Workshop Manuals Factory service & repair Rover
Rover 800 Workshop Manual (1996-1999)22 · Body
22 · Body & interior

All models

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs › All models
BodyAll models · page 1 of 3

All models

All models

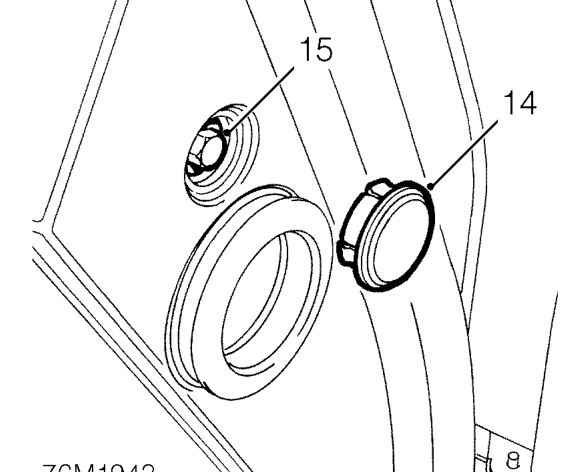

  1. Remove 2 bolt covers from ends of fascia.

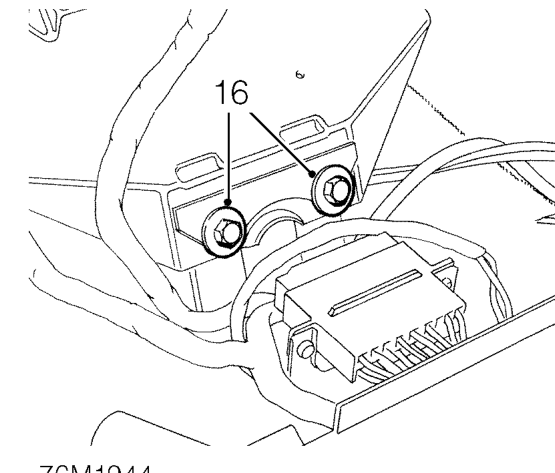

  2. Remove 2 bolts from ends of fascia.
All models – Remove 2 bolts from ends of fascia.
  1. Remove 2 bolts securing base of fascia, behind ash tray aperture. Collect reinforcing plate.
All models – Remove 2 bolts securing base of fascia, behind ash tray aperture. Collect reinforcing plat

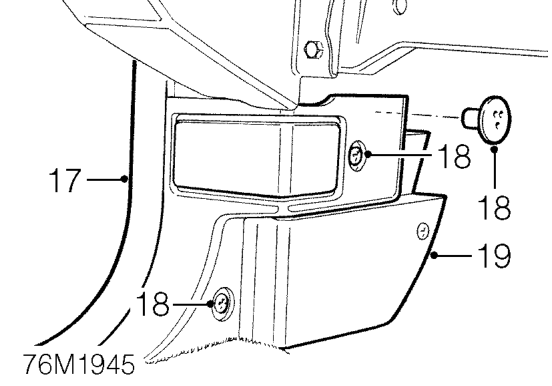

  1. Release flange finishers from ’A’ posts.
  2. Remove 5 screws and 2 studs securing the 2 lower ’A’ post trim casings.
  3. Remove 2 ’A’ post lower trim casings.
All models – Remove 2 ’A’ post lower trim casings.

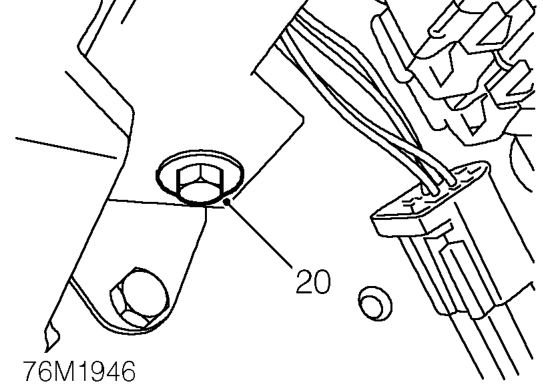

  1. Remove bolt securing fascia to each body side mounting bracket.
