BodyRear centre seat belt - 5 door & Coupe

REAR CENTRE SEAT BELT - 5 DOOR & COUPE

Service repair no - 76.73.37

Remove

Rear centre seat belt - 5 door & coupe – Service repair no - 76.73.37

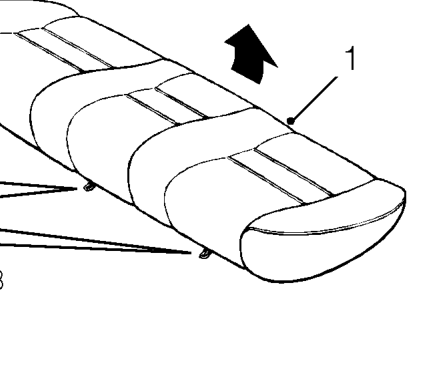

  1. Lift rear seat cushion from under squab and tip forward.
Rear centre seat belt - 5 door & coupe – Lift rear seat cushion from under squab and tip forward.

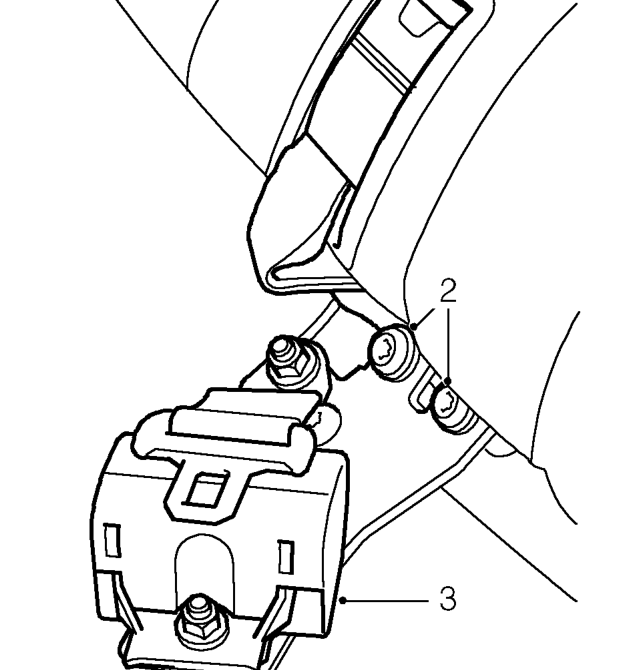

  1. Unscrew 2 TX50 screws securing mounting bracket to panel.
  2. Remove seat belt assembly.

NOTE: Fibre washer retains screw assemblies.

Refit

  1. Position seat belt assembly and tighten retaining screws to 32 Nm.
  2. Fit buckle into seat retainer and pull a length of belt from reel.
  3. Engage 3 retaining loops and fold seat cushion into position.
