BodyMotor - fore and aft - front seat

Refit

  1. Fit and align rear seat squab, fit bolts but do not tighten.
  2. Fit and tighten nuts securing squab.
  3. Close luggage compartment.
  4. Tighten bolts.
  5. Secure seat belt buckles in stowage recess.
  6. Fit rear seat cushion. See this section.

MOTOR - FORE AND AFT - FRONT SEAT

Service repair no - 78.70 25

Remove

  1. Remove front seat. See this section.

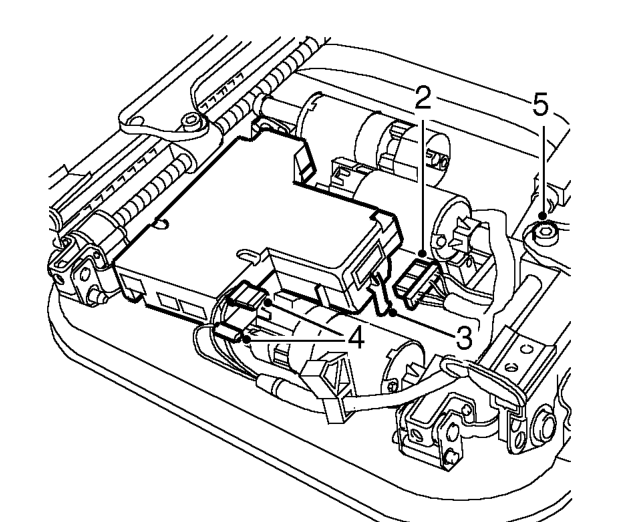

Motor - fore and aft - front seat – Remove front seat. See this section.
  1. Disconnect multiplug from seat ECU.
  2. Release retainer and remove ECU from seat.
  3. Disconnect 2 multiplugs from fore and aft motor.
  4. Remove Allen screw securing RH screw thread to seat frame.

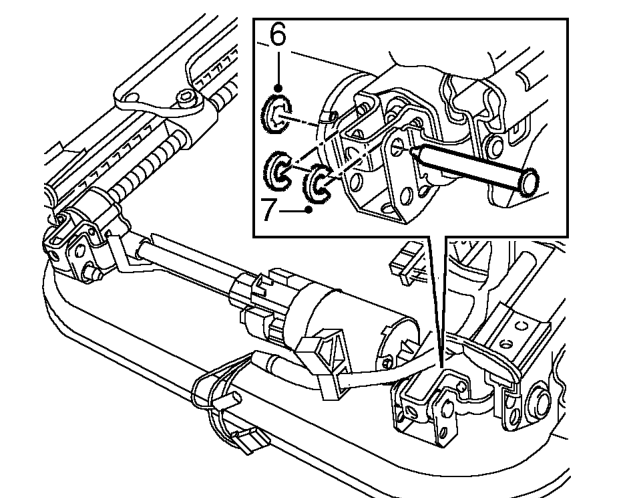

Motor - fore and aft - front seat – Remove Allen screw securing RH screw thread to seat frame.
  1. Remove 2 retainers from RH fore and aft gearbox roll pin. Remove roll pin.
  2. Remove spacers.
