Seat belt stalk - front

SEAT BELT STALK - FRONT

Service repair no - 76.73.30

Remove

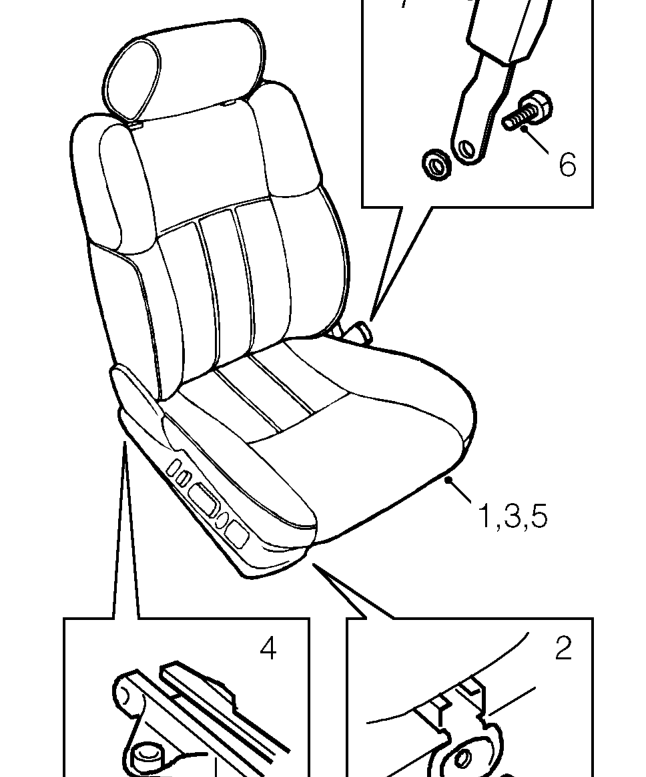

1. Move seat to rearmost position.
2. Remove 2 TX50 screws securing front of seat runners.
3. Move seat forwards.
4. Remove 2 TX50 screws securing rear of seat runners.
5. Lift rear of seat from its fitted position.
6. Unscrew bolt securing belt stalk to seat frame.
7. Remove seat belt stalk.

Refit

1. Fit seat belt stalk, tighten bolt to 32 Nm.
2. Position seat assy and align screw holes.
3. Fit screws to rear of seat runners, finger tight.
4. Move seat to rearmost position.
5. Fit screws to front of seat runners, tighten to 45 Nm.
6. Move seat forward, tighten rear screws to 45 Nm.
7. Adjust seat position.
