Rear seat squab - Coupe

Refit

1. Position front seat assembly.
2. Fit seat belt anchorage and tighten bolt to 32 Nm.

CAUTION: Seat belt reel and anchorage bolts are ’Duo Taptite’ self tapping bolts. They may be reused but it is essential that they are not allowed to become cross-threaded.

3. Position seat assy and align screw holes.
4. Fit screws to rear of seat runners, finger tight.
5. Electric seat: Connect seat control multiplugs.
6. Move seat to rearmost position.
7. Fit screws to front of seat runners, tighten to 45 Nm.
8. Move seat forward, tighten rear screws to 45 Nm.
9. Adjust seat position.

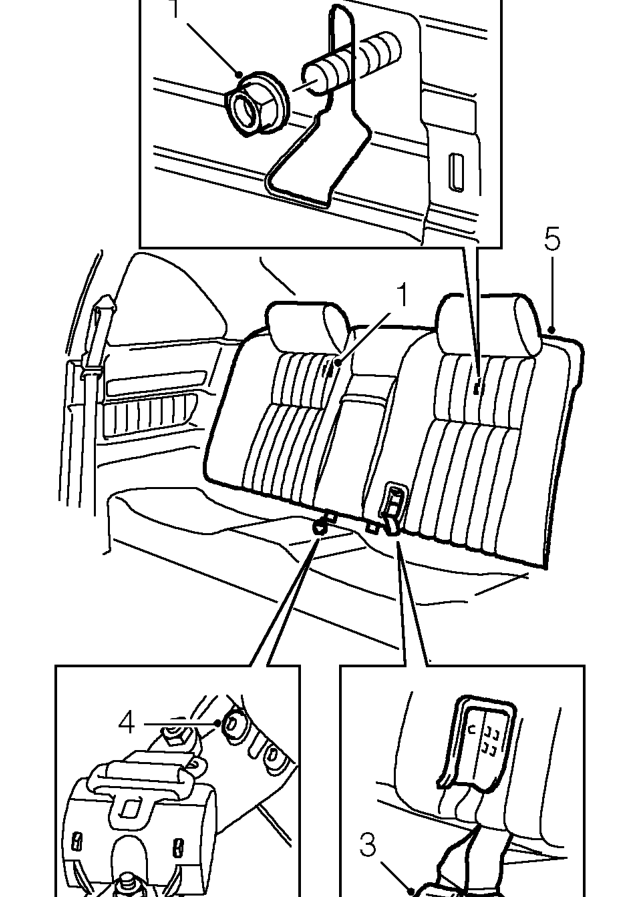

REAR SEAT SQUAB - COUPE

Service repair no - 78.10.56/99

Remove

1. Open luggage compartment and remove 2 nuts securing rear seat squab.
2. Remove rear seat cushion. See this section.
3. Release rear seat belt buckles from stowage recess.
4. Remove 2 bolts securing squab.
5. Release and remove rear seat squab. >
