Engine management system - EDCEngine compartment components

ENGINE COMPARTMENT COMPONENTS

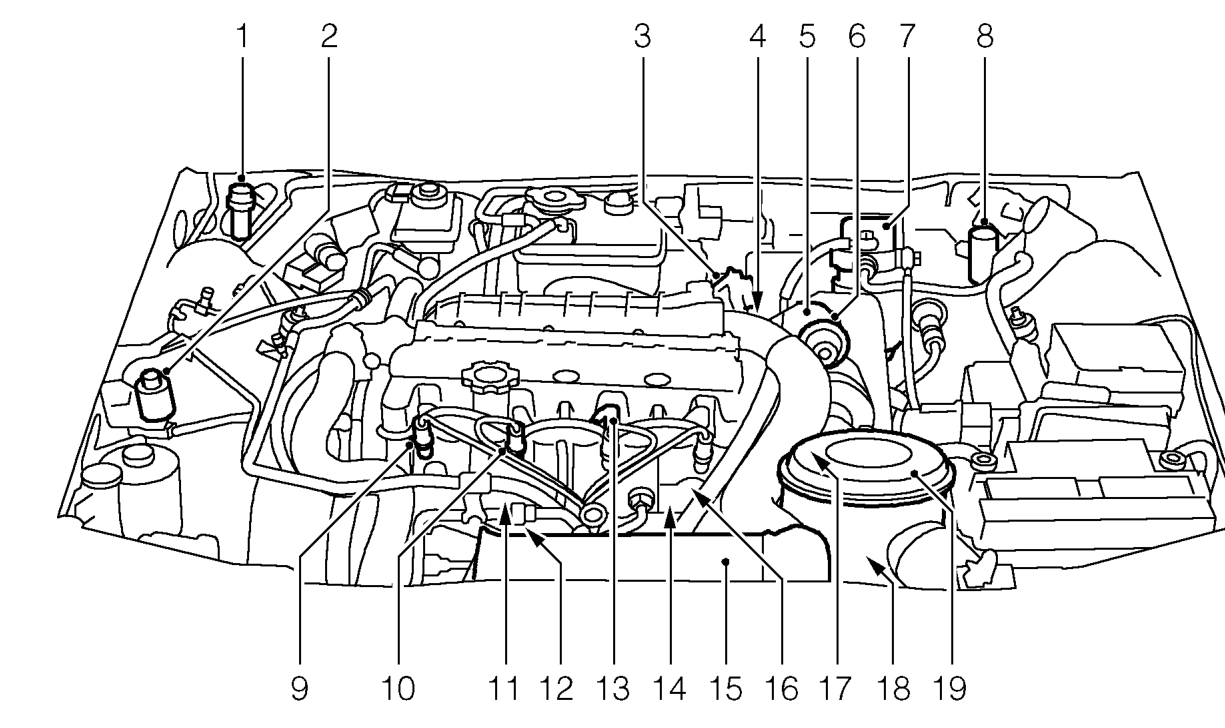

Engine compartment components
  1. Inertia fuel shut-off switch
  2. Throttle position sensor
  3. Exhaust Gas Recirculation (EGR) valve
  4. Vehicle speed sensor
  5. Turbocharger
  6. Wastegate - turbocharger
  7. Fuel filter Bleed screw - fuel filter Fuel heater switch Fuel heater
  8. Exhaust Gas Recirculation (EGR) solenoid
  9. Fuel injector with needle lift sensor
  10. Fuel injector - 3 off
  11. Fuel injection pump
  12. Fuel shut-off solenoid
  13. Glow plug - 4 off
  14. Fuel pump
  15. Intercooler
  16. Coolant temperature sensor
  17. Crankshaft sensor
  18. Mass air flow meter
  19. Air cleaner
