IGNITION COIL - ’T’ SERIES

Service repair no - 18.20.32

Remove

  1. Disconnect battery earth lead.

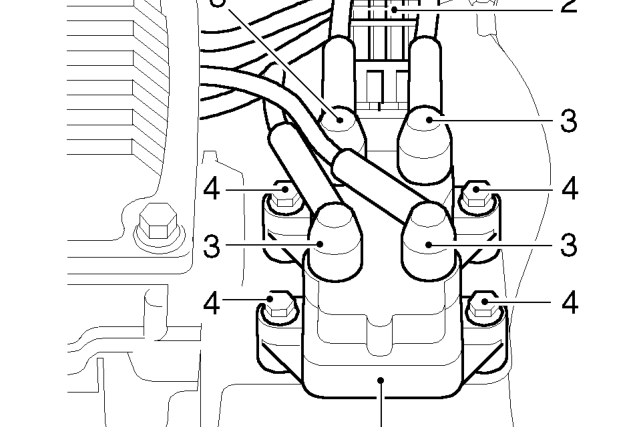

Ignition coil - ’t’ series – Disconnect battery earth lead.
  1. Disconnect multiplug from ignition coil.
  2. Disconnect h.t. leads from ignition coil.
  3. Remove 4 bolts and nuts securing ignition coil to mounting bracket.
  4. Remove ignition coil.

Refit

  1. Position coil to mounting bracket.
  2. Fit bolts and nuts securing ignition coil to mounting bracket and tighten to 9 Nm.

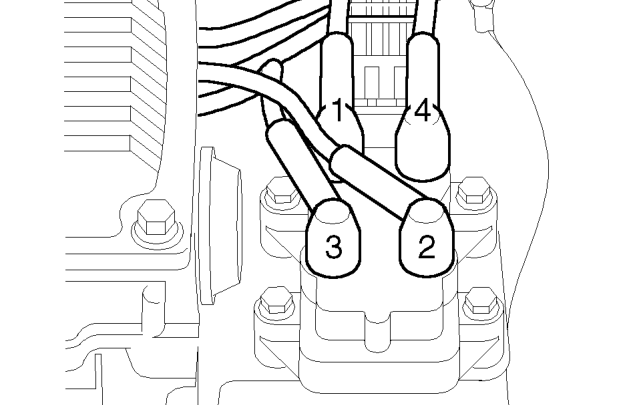

Ignition coil - ’t’ series – Fit bolts and nuts securing ignition coil to mounting bracket and tighten to 9 Nm.
  1. Connect h.t. leads to ignition coil as illustrated.
  2. Connect multiplug to ignition coil.
  3. Connect battery earth lead.
