Rover 800 Workshop Manual (1996-1999)08 · Engine management system - MEMS
08 · Engine

Fuel inertia switch

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs › Fuel inertia switch
Engine management system - MEMSFuel inertia switch

FUEL INERTIA SWITCH

Service repair no - 19.22.09

Remove

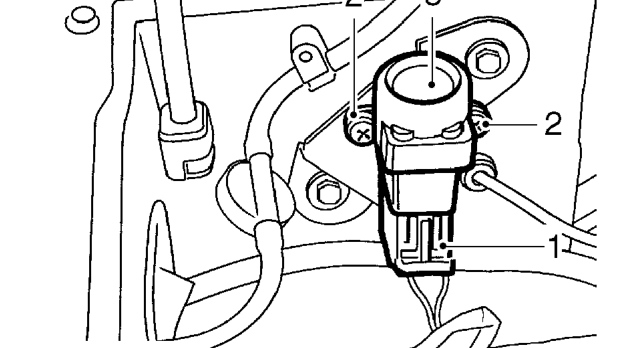

Fuel inertia switch – Service repair no - 19.22.09
  1. Disconnect multiplug from fuel inertia switch.
  2. Remove 2 screws securing switch to mounting bracket.
  3. Remove switch.

Refit

  1. Position switch to mounting bracket.
  2. Fit and tighten 2 screws securing switch to mounting bracket.
  3. Connect multiplug.
  4. Press top of switch to set switch.

HEATED OXYGEN (HO2S) SENSOR - FRONT - KV6

Service repair no - 19.22.16

Remove

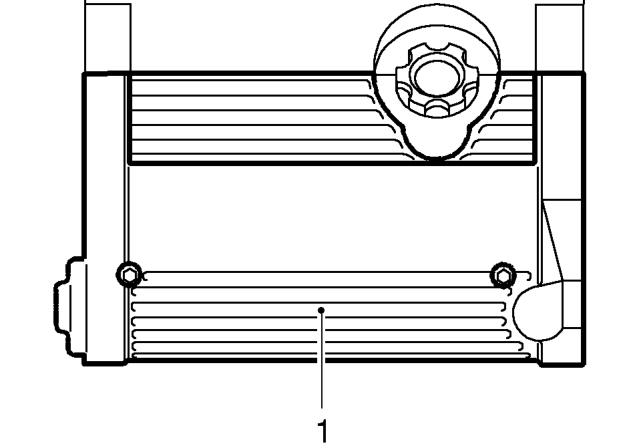

Heated oxygen (ho2s) sensor - front - kv6 – Service repair no - 19.22.16
  1. Remove 2 screws securing spark plug cover to LH camshaft cover and remove cover.
