Rover 800 Workshop Manual (1996-1999)08 · Engine management system - MEMS
08 · Engine

Engine coolant temperature (ect) sensor - KV6

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs › Engine coolant temperature (ect) sensor - KV6
Engine management system - MEMSEngine coolant temperature (ect) sensor - KV6

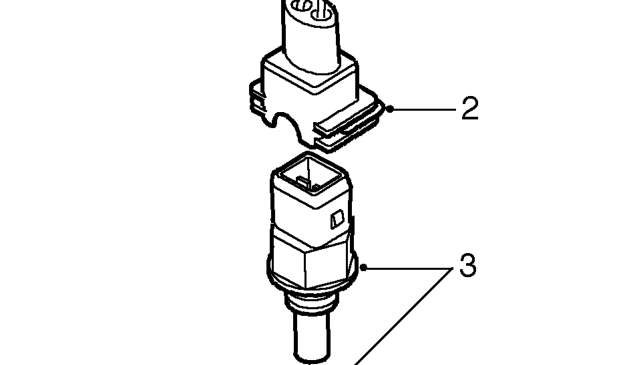

ENGINE COOLANT TEMPERATURE (ECT) SENSOR - KV6

Service repair no - 18.30.10

Remove

  1. Remove LH inlet manifold. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
Engine coolant temperature (ect) sensor - kv6 – Remove LH inlet manifold. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  1. Disconnect sensor multiplug.
  2. Remove sensor and discard sealing washer.

Refit

  1. Clean sensor and cylinder block mating face.
  2. Fit new sealing washer and tighten sensor to 7 Nm.
  3. Fit inlet manifold. See MANIFOLD & EXHAUST SYSTEMS, Repairs.

CRANKSHAFT POSITION (CKP) SENSOR - KV6 - MANUAL GEARBOX

Service repair no - 18.30.12

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

Crankshaft position (ckp) sensor - kv6 - manual gearbox – Raise front of vehicle.
  1. Remove 8 bolts securing centre beam to front and rear cross-members.
  2. Remove centre beam.
