CLUTCH PEDAL SWITCH - CRUISE CONTROL - KV6

Service repair no - 19.75.34

Remove

  1. Release 4 turnbuckles and remove fascia lower cover.
  2. Release 2 turnbuckles and remove pedal box closing panel.

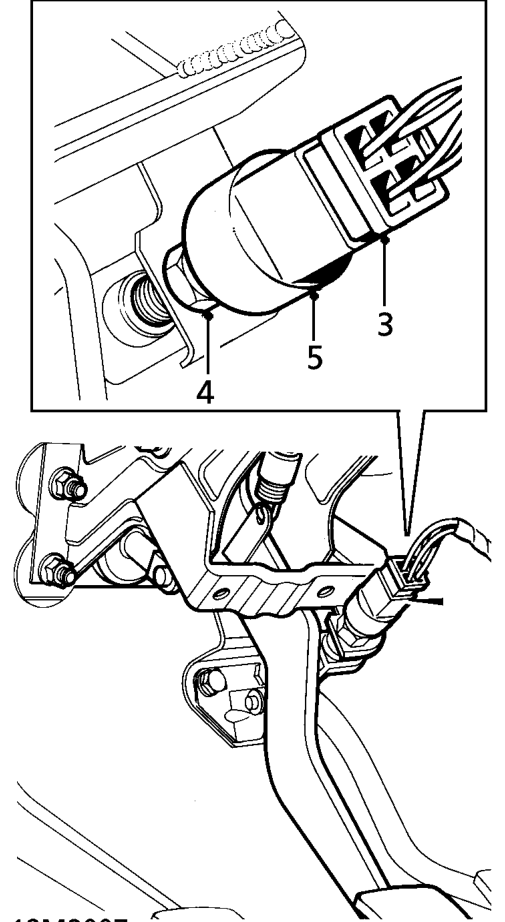

Clutch pedal switch - cruise control - kv6 – Release 2 turnbuckles and remove pedal box closing panel.
  1. Disconnect multiplug from switch.
  2. Loosen switch locknut.
  3. Unscrew and remove switch from pedal bracket.

Refit

  1. Screw locknut fully onto switch.
  2. Screw switch into bracket until plunger just contacts pedal.
  3. Connect ohmmeter across terminals. if reading is infinity, turn switch anti-clockwise until zero reading is obtained.
  4. Turn switch clockwise until infinity reading is just obtained.
  5. Turn switch clockwise 1 complete turn and tighten locknut.

CAUTION: Ensure switch plunger does not hold pedal off its return stop.

  1. Connect multiplug to switch.
  2. Refit pedal closing panel.
  3. Refit fascia lower cover.
