Rover 800 Workshop Manual (1996-1999)08 · Engine management system - MEMS
08 · Engine

Heated oxygen (h02s) sensor - rear - KV6

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs › Heated oxygen (h02s) sensor - rear - KV6
Engine management system - MEMSHeated oxygen (h02s) sensor - rear - KV6 · page 1 of 2

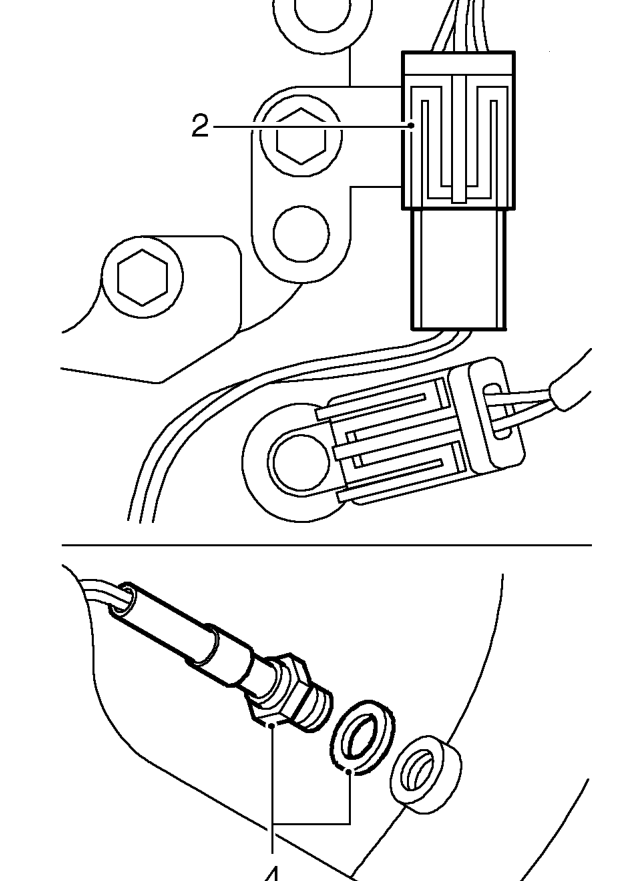

Diagram
  1. Release and disconnect oxygen sensor multiplug from clip on LH camshaft cover.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Using a 22 mm open ended spanner remove oxygen sensor and collect sealing washer.

Refit

  1. Fit sealing washer to oxygen sensor.
  2. Fit oxygen sensor and tighten to 40 Nm.
  3. Remove stand(s) and lower vehicle.
  4. Connect oxygen sensor multiplug and secure to bracket.
  5. Position spark plug cover and tighten screws to 4 Nm.

HEATED OXYGEN (H02S) SENSOR - REAR - KV6

Service repair no - 19.22.17

Remove

Heated oxygen (h02s) sensor - rear - kv6 – Service repair no - 19.22.17

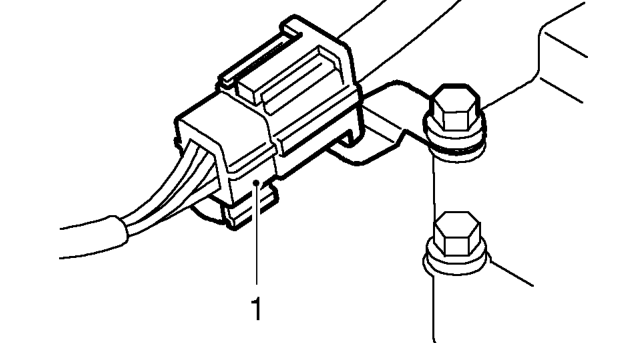

  1. Release and disconnect oxygen sensor multiplug from bracket on RH camshaft cover.
  2. Raise front of vehicle.

WARNING: Support on safety stands.
