CRUISE CONTROL SWITCH - KV6

Service repair no - 19.75.33

Remove

  1. Remove driver’s airbag module. See RESTRAINT SYSTEMS, Repairs.

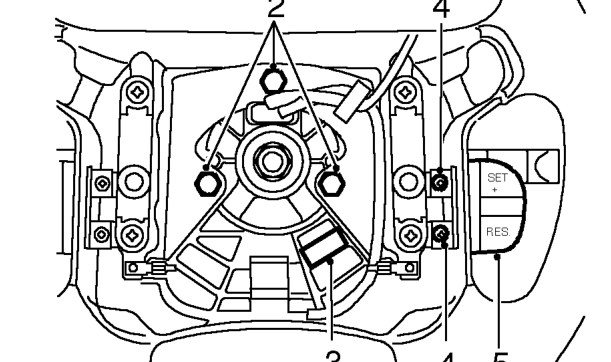

Cruise control switch - kv6 – Remove driver’s airbag module. See RESTRAINT SYSTEMS, Repairs.
  1. Fully loosen 3 bolts and release mounting bracket from fitted position.
  2. Disconnect cruise control switch multiplug from harness.
  3. Remove 2 screws securing cruise control switch to steering wheel.
  4. Remove cruise control switch from steering wheel.

Refit

  1. Locate wiring in steering wheel groove and engage cruise control switch in steering wheel and secure.
  2. Connect multiplug and position in steering wheel groove.
  3. Press bracket into position and tighten retaining bolts.
  4. Refit driver’s airbag module. See RESTRAINT SYSTEMS, Repairs.

BRAKE PEDAL SWITCH - CRUISE CONTROL - KV6

Service repair no - 19.75.35

Remove

  1. Release 4 turnbuckles and remove fascia lower cover.
  2. Release 2 turnbuckles and remove pedal box closing panel.

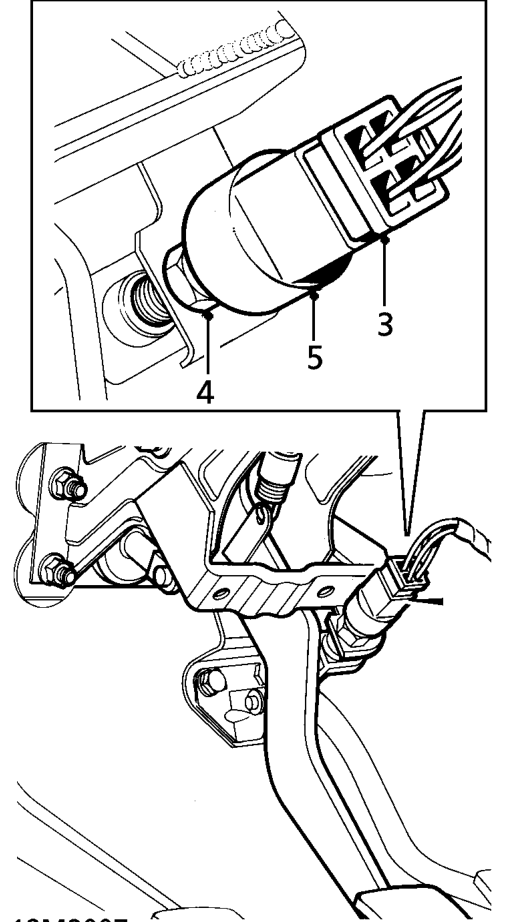

Brake pedal switch - cruise control - kv6 – Release 2 turnbuckles and remove pedal box closing panel.
  1. Disconnect multiplug from switch.
  2. Loosen switch locknut.
  3. Unscrew and remove switch from pedal bracket.
