SPARK PLUGS - KV6

Service repair no - 18.20.02

Remove

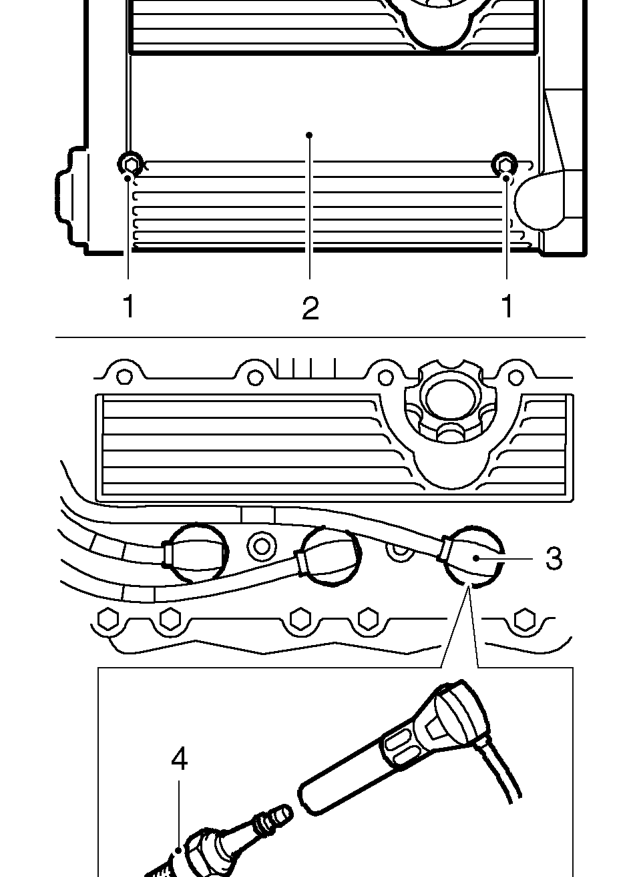

Spark plugs - kv6 – Service repair no - 18.20.02
  1. Remove 2 screws securing spark plug cover to LH camshaft cover.
  2. Remove spark plug cover.
  3. Disconnect h.t. leads from spark plugs.
  4. Using a 16 mm spark plug socket, remove 6 spark plugs.

Refit

  1. Set gap of each new spark plug to 0.85 mm.
  2. Fit spark plugs and tighten to 25 Nm.
  3. Connect h.t. leads to spark plugs.
  4. Fit spark plug cover and tighten screws to 4 Nm.
