Engine control module

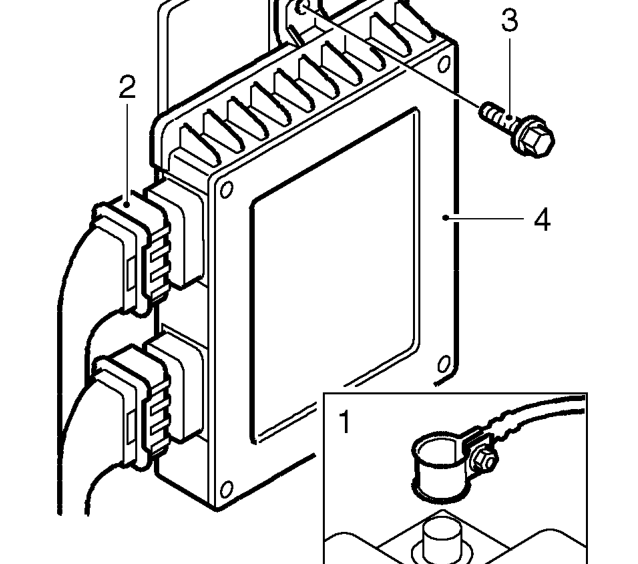

ENGINE CONTROL MODULE

Service repair no - 18.30.01

Remove

1. Disconnect battery earth lead.
2. Disconnect 2 multiplugs from engine control module.
3. Remove bolt securing engine control module to mounting bracket.
4. Release and remove engine control module.

Refit

1. Fit engine control module to mounting bracket.
2. Fit bolt securing engine control module to mounting bracket and tighten to 9 Nm.
3. Connect multiplugs to engine control module.
4. Connect battery earth lead.

NOTE: If a new engine control module is fitted, the engine control module will need to be programmed with the code from the anti-theft security unit using TestBook, before the engine can be started.

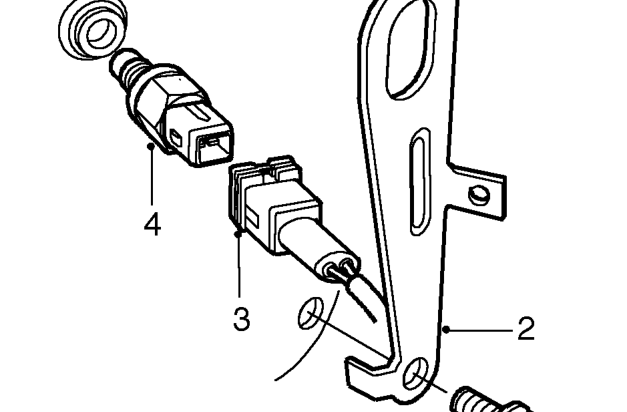

INTAKE AIR TEMPERATURE SENSOR - KV6

Service repair no - 18.30.09

Remove

1. Disconnect battery earth lead.

2. Remove bolt securing engine lifting bracket and move aside.
3. Disconnect multiplug from intake air temperature sensor.
4. Remove intake air temperature sensor.

Refit

1. Clean threads of intake air temperature sensor.
2. Clean mating faces of intake air temperature sensor and inlet manifold.
3. Fit sensor to inlet manifold and tigten to 4 Nm.
4. Connect multiplug to intake air temperature sensor.
5. Position engine lifting bracket and tighten bolt to 40 Nm.
6. Connect battery earth lead.
