Manifold absolute pressure (map) sensor - KV6

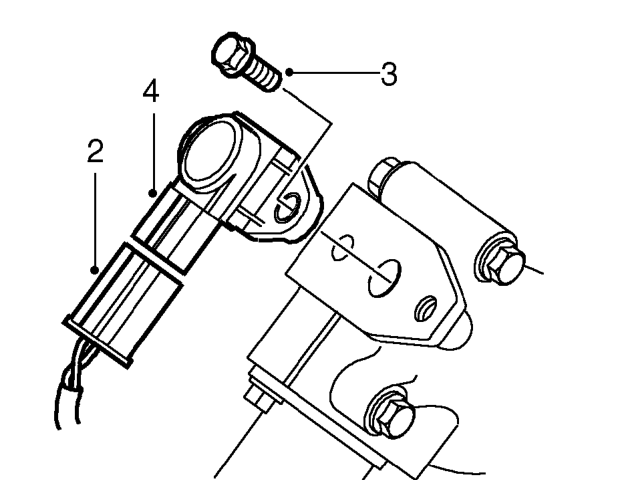

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR - KV6

Service repair no - 18.30.56

Remove

1. Disconnect battery earth lead.

2. Disconnect sensor multiplug.
3. Remove 2 screws securing sensor to inlet manifold chamber
4. Remove sensor.

Refit

1. Clean sensor mating faces and recess in manifold.
2. Fit sensor and tighten screws to 9 Nm.
3. Connect sensor multiplug.
4. Connect battery earth lead.

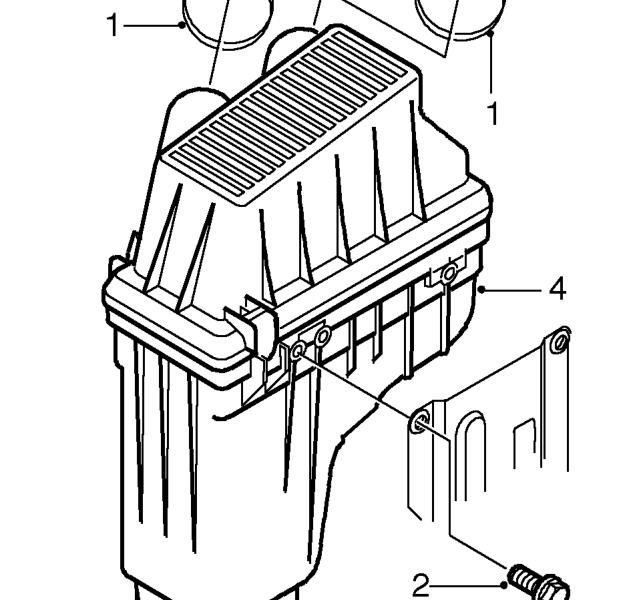

AIR CLEANER - KV6

Service repair no - 19.10.01

Remove

1. Release clips securing intake hoses to air cleaner.
2. Remove 2 bolts securing air cleaner to battery tray.
3. Release intake hoses from air cleaner.
4. Remove air cleaner.

Refit

1. Position air cleaner in vehicle and connect air intake hoses.
2. Align air cleaner to battery tray.
3. Fit and tighten 2 bolts securing air cleaner to battery tray.
4. Secure intake hose clips.
