Rover 800 Workshop Manual (1996-1999)09 · Engine management system - EDC
09 · Engine

Air cleaner

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs › Air cleaner
Engine management system - EDCAir cleaner · page 1 of 2

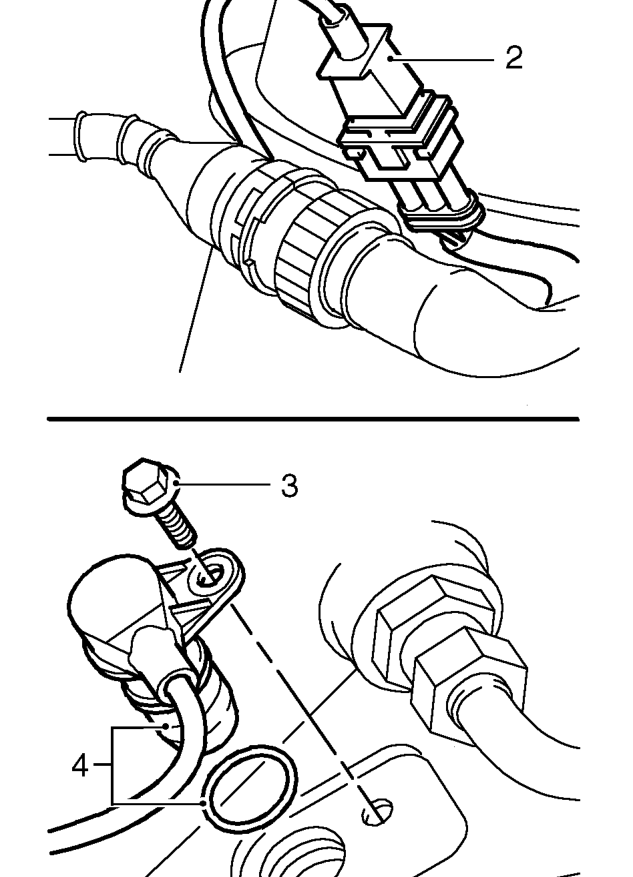

Diagram
  1. Disconnect crankshaft position sensor multiplug and release lead connector from mounting bracket.
  2. Remove bolt securing crankshaft position sensor to gearbox casing.
  3. Remove sensor and discard ’O’ ring.

Refit

  1. Fit NEW ’O’ ring to sensor.
  2. Fit sensor and tighten bolt to 9 Nm.
  3. Position lead connector to securing bracket and connect multiplug.
  4. Fit engine acoustic cover.

AIR CLEANER

Service repair no - 19.10.01

Remove

  1. Remove battery. See ELECTRICAL, Repairs.

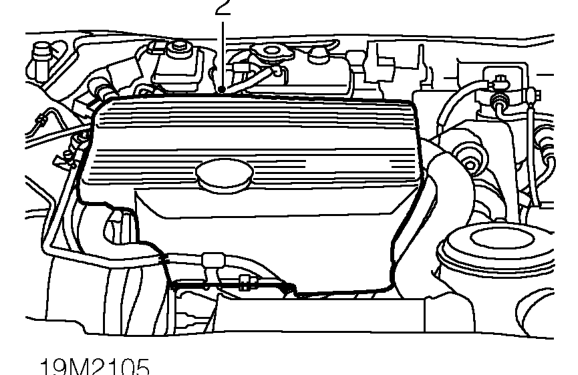

Air cleaner – Remove battery. See ELECTRICAL, Repairs.
  1. Remove engine acoustic cover.
