INTERCOOLER

Service repair no - 19.42.15

Remove

  1. Disconnect battery earth lead.

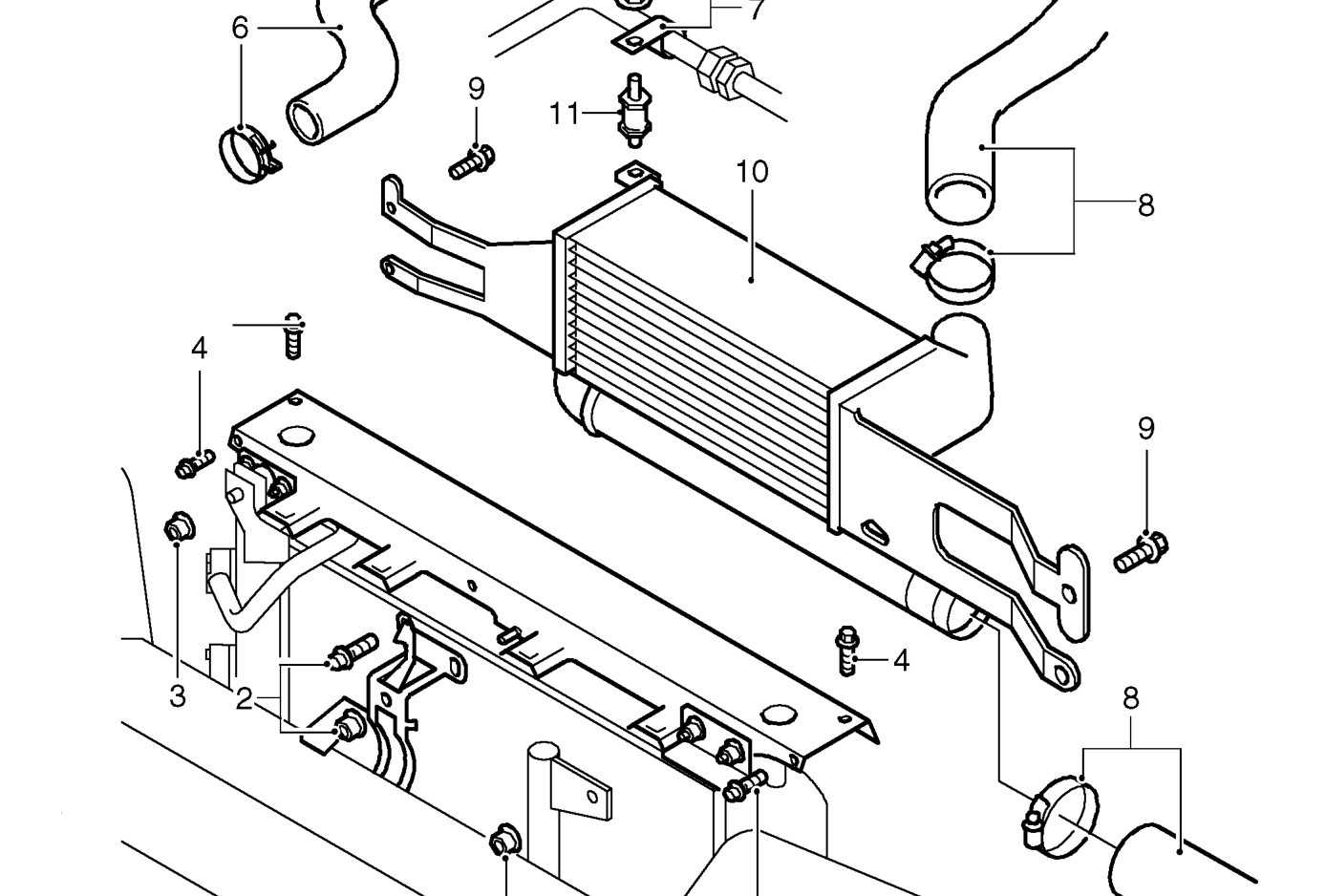

Intercooler – Disconnect battery earth lead.
  1. Remove nut and bolt securing safety catch to bonnet platform.
  2. Air conditioning: Remove 2 nuts securing condenser brackets to bonnet platform.
  3. Remove 4 bolts securing bonnet platform to body and move platform aside.
  4. Position container under radiator.
  5. Release clip and disconnect top hose.
  6. Air conditioning: Remove nut securing air conditioning pipe clip to intercooler. Release clip.
  7. Loosen 2 clips and disconnect 2 intercooler hoses.
  8. Remove 4 bolts securing intercooler.
  9. Remove intercooler. Do not carry out further dismantling if component is removed for access only.
  10. Air conditioning: Remove pipe clip mounting rubber from intercooler.
