Engine management system - EDCEngine control module

ENGINE CONTROL MODULE

Service repair no - 18.30.03

Remove

  1. Remove battery. See ELECTRICAL, Repairs.

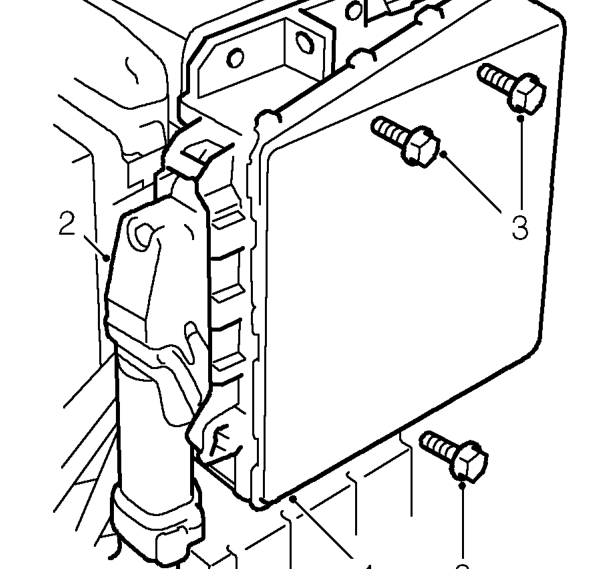

Engine control module – Remove battery. See ELECTRICAL, Repairs.
  1. Disconnect multiplug from engine control module.
  2. Remove 3 screws securing engine control module to mounting bracket.
  3. Release and remove engine control module.

Refit

  1. Fit engine control module to mounting bracket.
  2. Fit screws securing engine control module to mounting bracket and tighten to 9 Nm.
  3. Connect multiplug to engine control module.
  4. Fit battery. See ELECTRICAL, Repairs.

NOTE: If a new engine control module is fitted, the control module will need to be programmed with the code from the anti-theft security unit using TestBook, before the engine can be started.

FUEL SHUT-OFF SOLENOID

Service repair no - 18.30.07

Remove

  1. Disconnect battery earth lead.

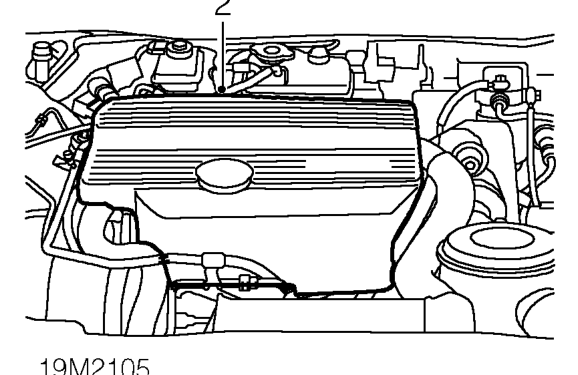

Fuel shut-off solenoid – Disconnect battery earth lead.
  1. Remove engine acoustic cover.
  2. Clean top of injection pump around fuel shut-off solenoid.
  3. Position cloth to absorb fuel spillage.
