Rover 800 Workshop Manual (1996-1999)09 · Engine management system - EDC
09 · Engine

Glow plugs

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs › Glow plugs
Engine management system - EDCGlow plugs · page 1 of 2

Refit

  1. Clean injector and mating face in cylinder head.
  2. Fit NEW sealing washer to injector.
  3. Fit injector and tighten to 70 Nm.
  4. Connect fuel return hoses.
  5. No.1 injector: Connect injector sensing lead multiplug and secure to bracket.
  6. Fit injector pipes. See FUEL DELIVERY SYSTEM, Repairs.

GLOW PLUGS

Service repair no - 19.60.31

Remove

  1. Disconnect battery earth lead.

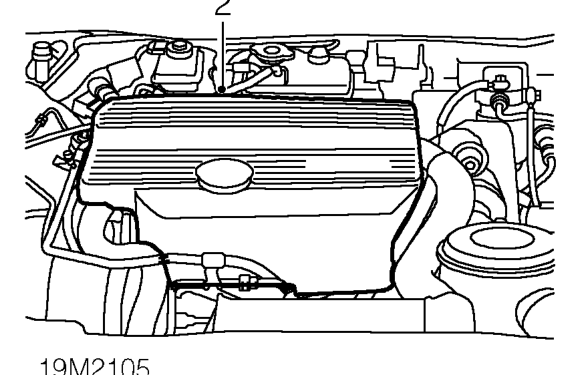

Glow plugs – Disconnect battery earth lead.
  1. Remove engine acoustic cover.

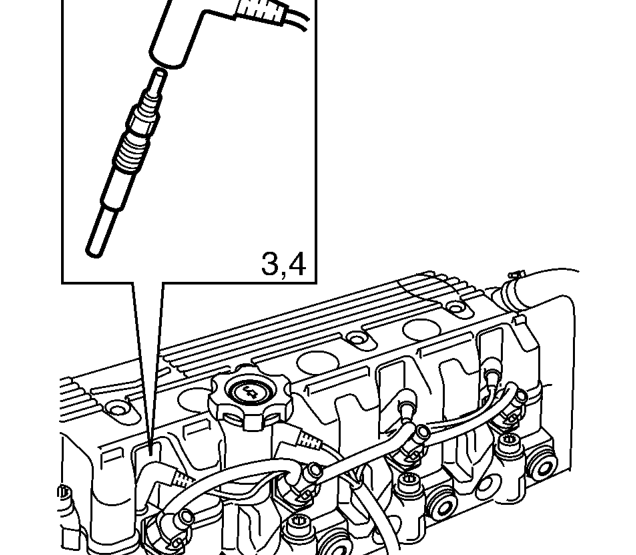

Glow plugs – Remove engine acoustic cover.
  1. Disconnect 4 feed leads from glow plugs.
  2. Remove 4 glow plugs.
