Engine coolant temperature sensor

5. Remove terminal nut and disconnect lead from fuel shut-off solenoid terminal.

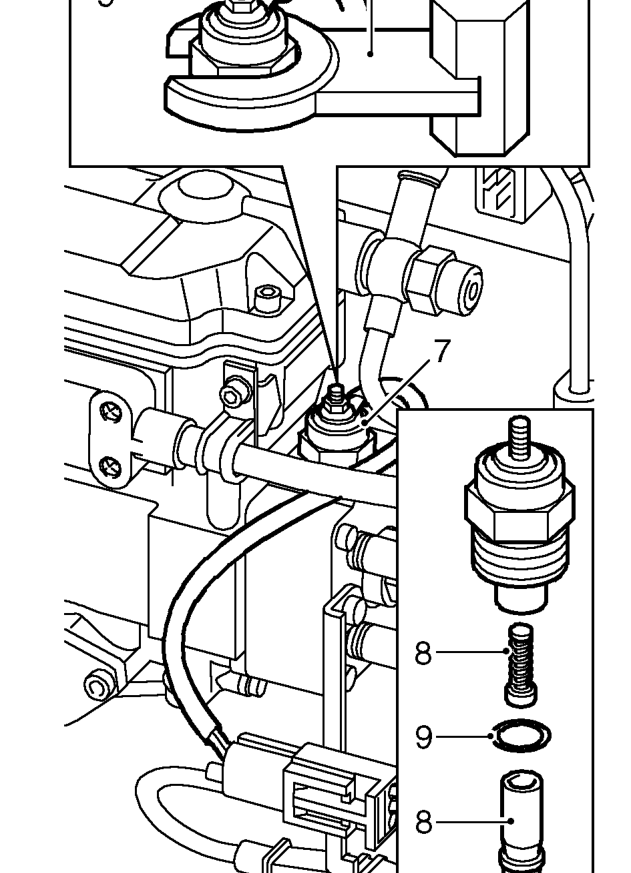

6. Using tool 18G 1550 loosen fuel shut-off solenoid.
7. Remove tool 18G 1550 and remove fuel shut-off solenoid.
8. Collect solenoid plunger and spring.
9. Remove ’O’ ring from fuel shut-off solenoid and discard.

Refit

1. Lubricate and fit NEW ’O’ ring to fuel shut-off solenoid.
2. Clean solenoid plunger.
3. Fit spring and plunger to fuel shut-off solenoid.
4. Fit fuel shut-off solenoid to injection pump and using 18G 1550, tighten to 20 Nm.
5. Connect lead to solenoid terminal, fit nut and tighten to 3 Nm.
6. Remove cloth.
7. Fit engine acoustic cover.
8. Connect battery earth lead.

ENGINE COOLANT TEMPERATURE SENSOR

Service repair no - 18.30.10

Remove

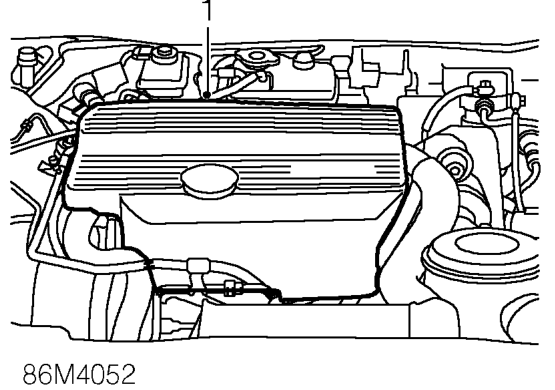

1. Remove engine acoustic cover.
2. Position container to collect coolant spillage.
