Rover 800 Workshop Manual (1996-1999)09 · Engine management system - EDC
09 · Engine

Throttle position sensor

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs › Throttle position sensor
Engine management system - EDCThrottle position sensor · page 1 of 3

THROTTLE POSITION SENSOR

Service repair no - 19.22.49

Remove

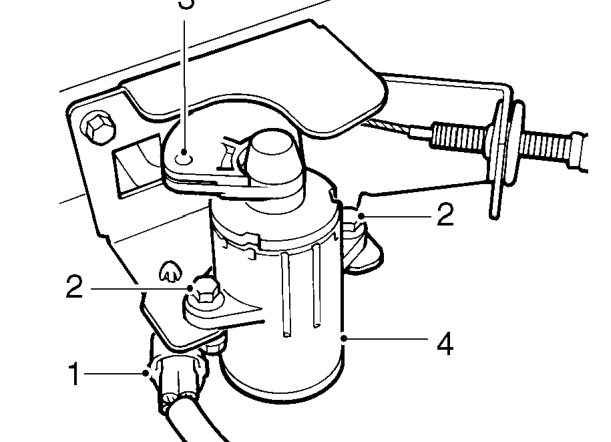

Throttle position sensor – Service repair no - 19.22.49
  1. Disconnect multiplug from throttle position sensor and release multiplug holder from mounting bracket.
  2. Remove 2 bolts, nuts and washers securing throttle position sensor to mounting bracket.
  3. Disconnect throttle cable from throttle position sensor.
  4. Remove throttle position sensor.

Refit

  1. Fit throttle position sensor to mounting bracket, connect throttle cable and fit 2 bolts washers and nuts.
  2. Secure multiplug holder to mounting bracket and connect multiplug.

INJECTION PUMP

Service repair no - 19.30.07

Remove

  1. Remove rocker cover gasket. See ENGINE - DIESEL, Repairs.
  2. Remove injector pipes. See FUEL DELIVERY SYSTEM, Repairs.

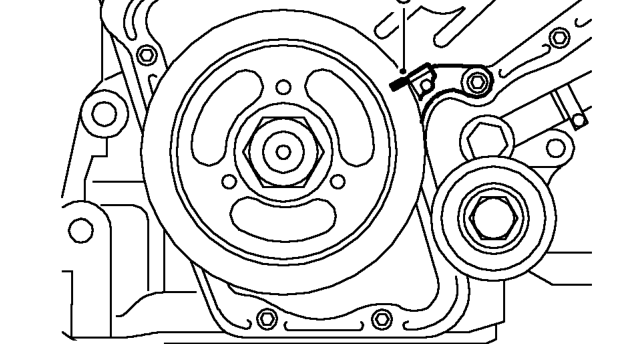

Injection pump – Remove injector pipes. See FUEL DELIVERY SYSTEM, Repairs.
  1. Rotate crankshaft until No.1 piston is at TDC on compression stroke (No.4 valves rocking), and align timing mark.
