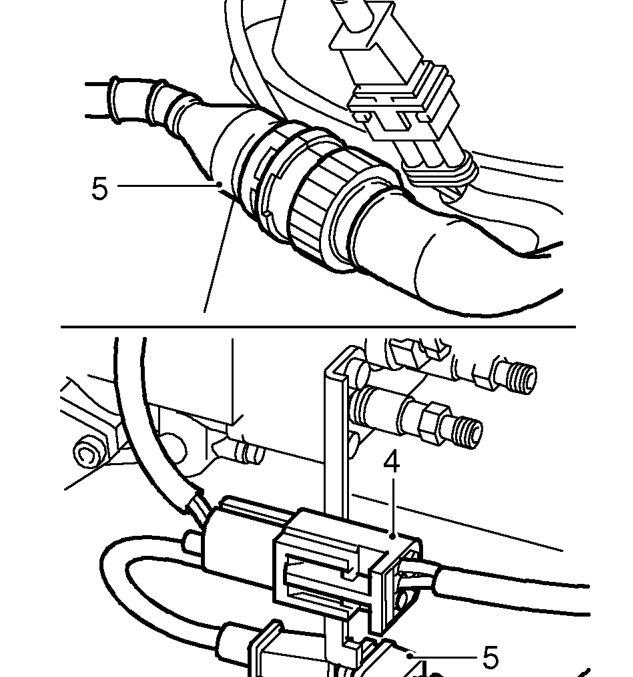

4. Release fuel cut-off solenoid multiplug from bracket and disconnect multiplug.
5. Disconnect 2 injection pump multiplugs.

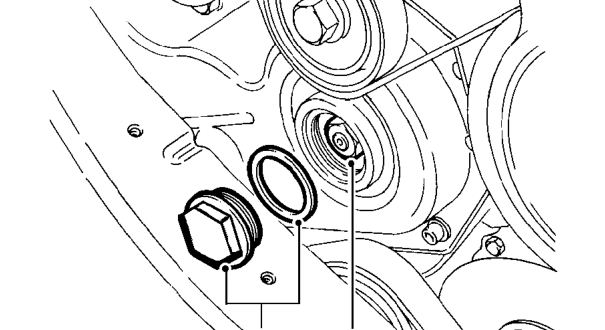

6. Remove blanking plug from timing cover and collect sealing washer.
7. With assistant restraining crankshaft to prevent rotation, remove nut securing injection pump gear.
8. Remove washer.

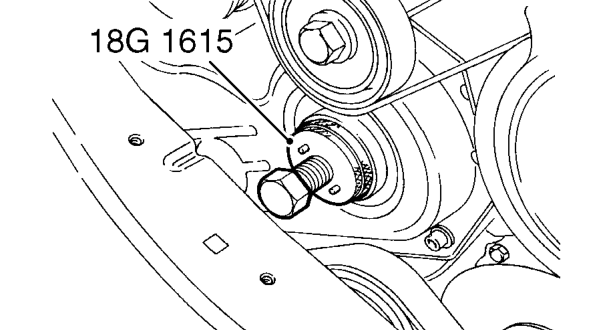

9. Screw outer part of tool 18G 1615 into cover.
10. Fit inner part of tool 18G 1615 through outer part and screw into pump gear.
