Engine management system - EDCInjector

Refit

  1. Fit intercooler.
  2. Fit bolts securing intercooler and tighten to 5 Nm.
  3. Connect intercooler hoses and tighten hose clips.
  4. Air conditioning: Secure air conditioning pipe clip to intercooler and tighten nut.
  5. Connect top hose and secure with clip.
  6. Fit bonnet platform, fit and tighten bolts to 9 Nm.
  7. Air conditioning: Fit and tighten nuts securing condenser brackets.
  8. Fit and tighten nut and bolt securing safety catch to bonnet platform.
  9. Remove container.
  10. Refill cooling system. See COOLING SYSTEM - DIESEL, Adjustments.
  11. Connect battery earth lead.

INJECTOR

Service repair no - 19.60.10

Remove

  1. Remove injector pipes. See FUEL DELIVERY SYSTEM, Repairs.

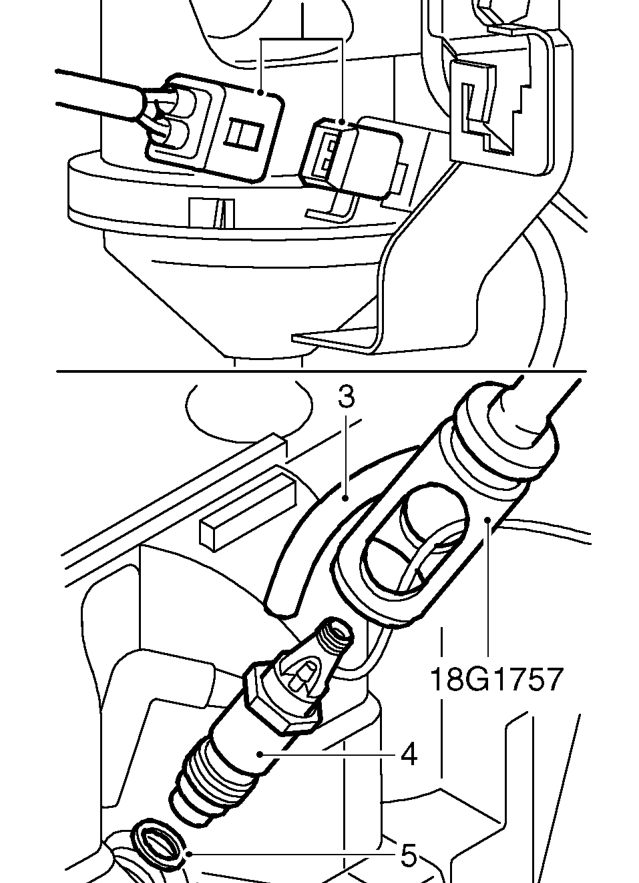

Injector – Remove injector pipes. See FUEL DELIVERY SYSTEM, Repairs.
  1. No.1 injector: Release needle lift sensing lead multiplug from bracket and disconnect multiplug.
  2. Disconnect fuel return hoses.
  3. Using tool 18G 1757 remove injector.

NOTE: Slot in tool 18G 1757 is provided for injector needle lift sensing lead.

  1. Remove and discard sealing washer.
