Crankshaft position sensor

Make

Rover

Model

800 Workshop Manual

Year

1996–1999

Section

Repairs › Crankshaft position sensor

Engine management system - EDCCrankshaft position sensor

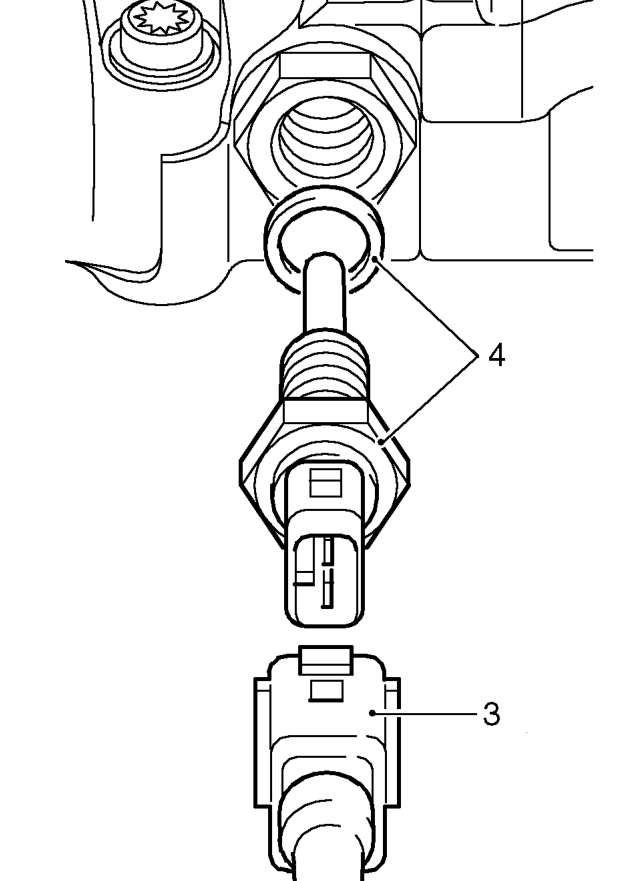

3. Disconnect multiplug from coolant temperature sensor.
4. Remove coolant temperature sensor and collect sealing washer.

Refit

1. Clean sensor and cylinder head mating face.
2. Fit NEW sealing washer and tighten sensor to 18 Nm.
3. Refill cooling system. See COOLING SYSTEM - DIESEL, Adjustments.
4. Fit engine acoustic cover.

CRANKSHAFT POSITION SENSOR

Service repair no - 18.30.12

Remove

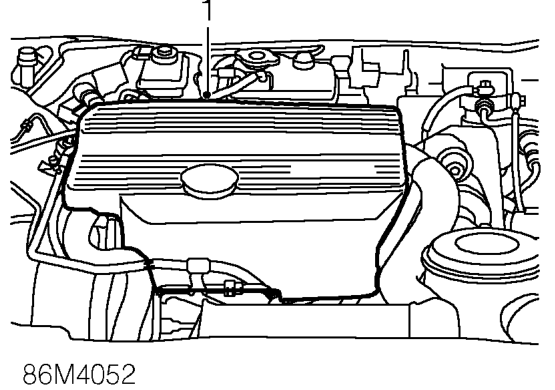

1. Remove engine acoustic cover.

09 Engine
