Mass air flow (maf) sensor

Refit

1. Feed new cable through bulkhead and connect inner cable to pedal.
2. Fit retaining clip.
3. Smear rubber grease on both sides of the rubber seal and secure outer cable retainer to bulkhead.
4. LHD models: Secure cable to clips.
5. Connect inner cable to throttle position sensor.
6. Adjust throttle cable. See Adjustments.

MASS AIR FLOW (MAF) SENSOR

Service repair no - 19.22.25

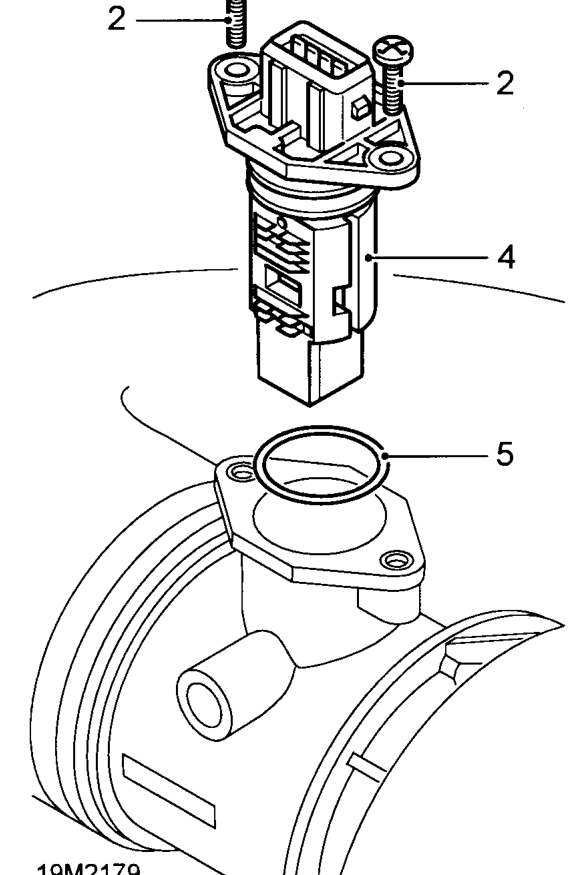

Remove

1. Remove air cleaner. See this section.

2. Remove 2 screws securing MAF sensor to air cleaner.
3. Release MAF sensor from air cleaner.
4. Remove MAF sensor.
5. Remove and discard ’O’ ring.

Refit

1. Fit new ’O’ ring to MAF sensor.
2. Fit MAF sensor to air cleaner, secure with screws.
3. Fit air cleaner. See this section.
