Rover 800 Workshop Manual (1996-1999)25 · Electrical
25 · Electrical

Ancillary drive belt adjust - diesel (Electrical)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Adjustments › Ancillary drive belt adjust - diesel
ElectricalAncillary drive belt adjust - diesel · page 1 of 2

ANCILLARY DRIVE BELT ADJUST - DIESEL

Service repair no - 86.10.05

Release tension

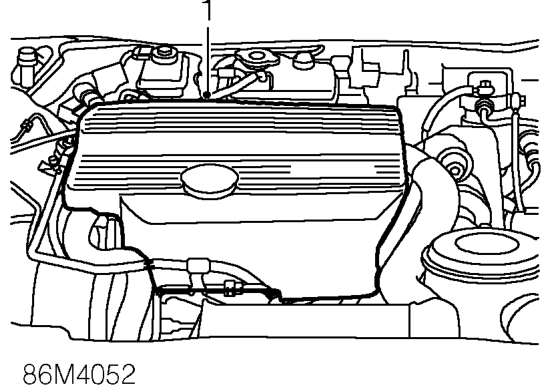

Release tension – Service repair no - 86.10.05
  1. Remove engine acoustic cover.
  2. Disconnect battery earth lead.

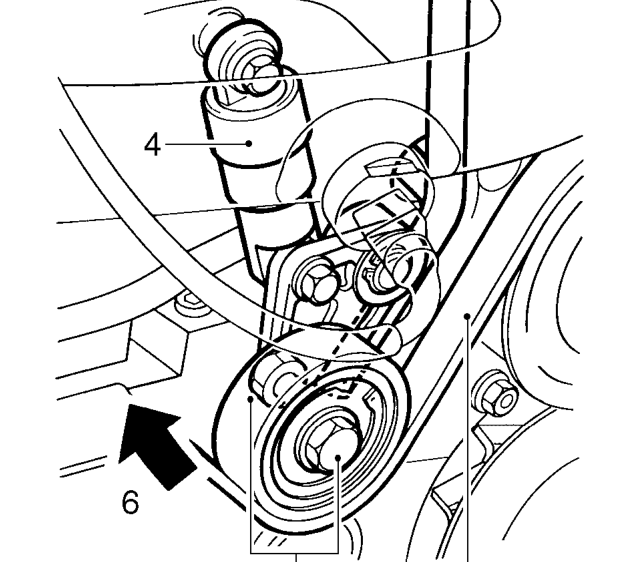

Release tension – Disconnect battery earth lead.
  1. Fit tool 18G 1614 to power steering pump bracket.
  2. Raise tensioner.
  3. Loosen nut on tensioner pulley.

NOTE: Note position of tensioner pulley if original drive belt is to be fitted.

  1. Rotate tensioner pulley to its uppermost position.
  2. Release belt from tensioner pulley.
  3. Release tensioner and remove tool 18G 1614.

Adjust tension

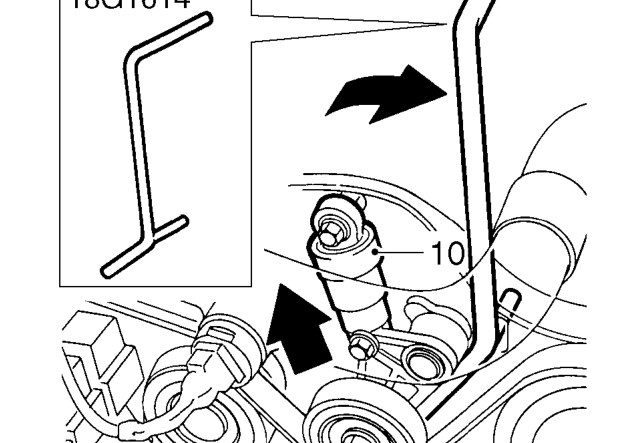

Adjust tension – Release tensioner and remove tool 18G 1614.
  1. Fit tool 18G 1614 to power steering pump bracket.
  2. Raise tensioner.
