Combined screen wash and wiper switch (page 2 of 2)

Make

Rover

Model

800 Workshop Manual

Year

1996–1999

Section

Repairs

Wipers & washersCombined screen wash and wiper switch · page 2 of 2

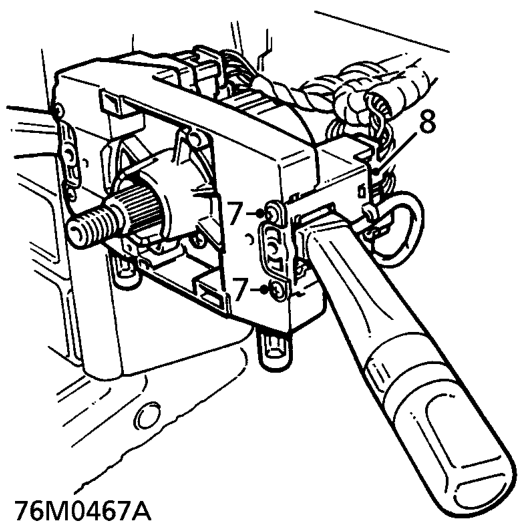

7. Remove 2 screws securing combined screen wash and wiper switch.
8. Release switch, disconnect multiplugs and remove switch.

Refit

1. Position switch and connect multiplugs.
2. Secure switch and tighten screws.
3. Secure rotary coupler to column switch assembly.
4. Fit column cowl and tighten screws.
5. Fit fusebox cover and secure turnbuckles.
6. Fit steering wheel. See STEERING, Repairs.

24 Electrical
