ElectricalAncillary drive belt adjust - diesel · page 2 of 2

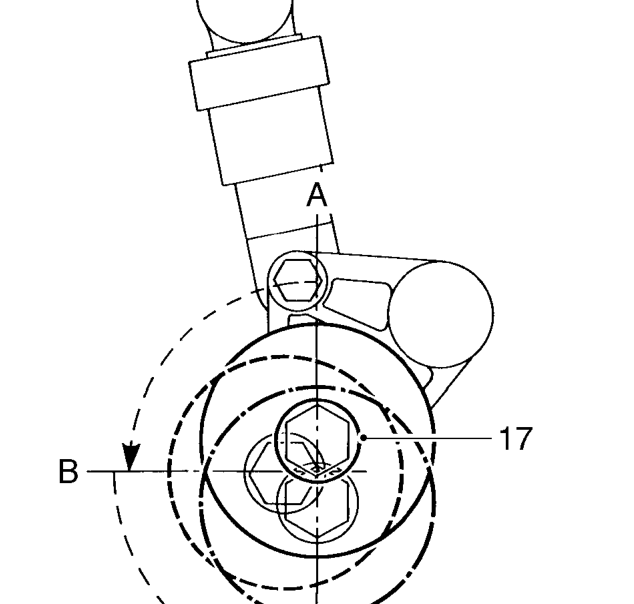

11. Ensure pulley is in its uppermost position ’A’.
12. Fit drive belt under tensioner pulley.
13. Release tension and remove 18G 1614. Using a spanner on the
14. Original belt: tensioner pulley securing bolt, rotate pulley to its original position. Using a spanner on the tensioner
15. New belt: pulley securing bolt rotate, pulley anti-clockwise to position ’B’ Using a spanner on the
16. Service tensioning: tensioner pulley securing bolt, rotate pulley anti-clockwise to position ’C’.
17. Tighten tensioner pulley securing nut.
18. Fit engine acoustic cover.
19. Connect battery earth lead.
