ALTERNATOR - KV6

Service repair no - 86.10.02

Remove

  1. Disconnect battery earth lead.
  2. Remove engine acoustic cover. See BODY, Repairs.
Alternator - kv6 – Remove engine acoustic cover. See BODY, Repairs.

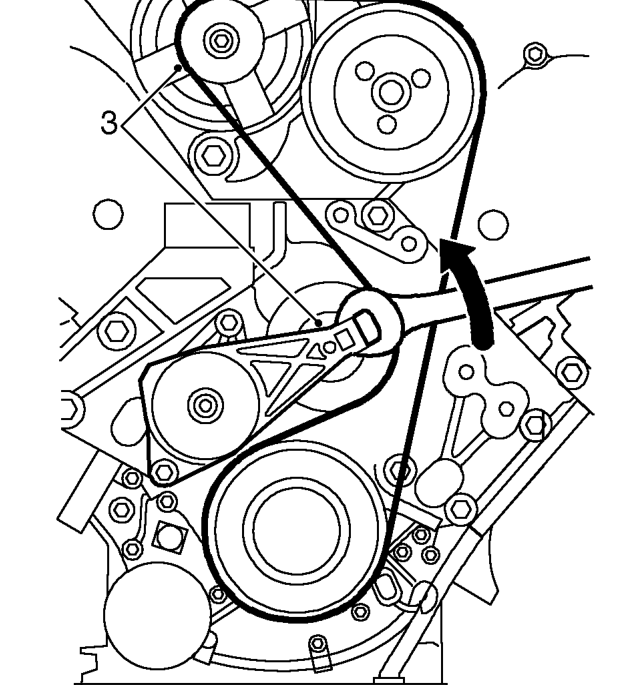

  1. Using a 25 mm spanner, raise ancillary drive belt tensioner and release drive belt from alternator pulley.
  2. Position jack to support engine.
Alternator - kv6 – Position jack to support engine.

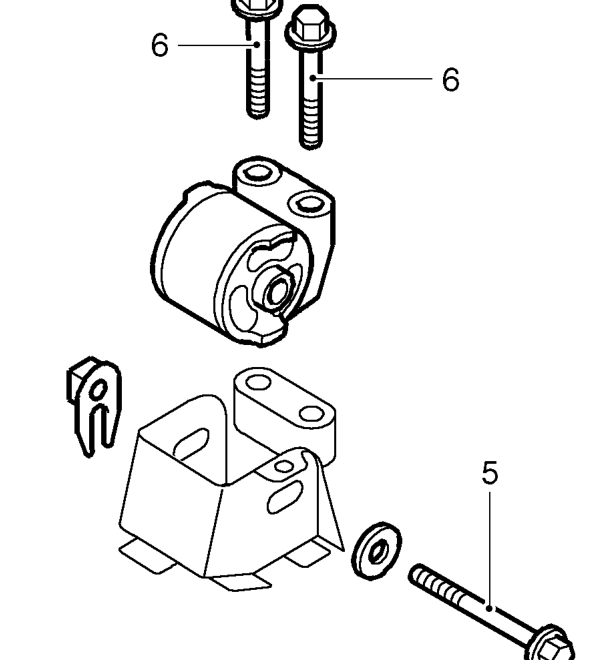

  1. Remove bolt securing RH engine mounting to body.
  2. Remove 2 bolts securing RH mounting to engine. Remove mounting.
