Ancillary drive belt - KV6

Refit

1. Clean drive belt pulleys.
2. Position alternator to engine.
3. Align alternator to mounting bracket, fit and tighten bolts to 75 Nm.
4. Connect multiplug to alternator.
5. Fit underbelly panel. See BODY, Repairs.
6. Fit radiator cooling fan. See COOLING SYSTEM - DIESEL, Repairs.
7. Fit tool 18G 1614 to power steering pump bracket, raise tensioner and connect drive belt to alternator. Ensure belt is correctly located in pulley grooves.
8. Fit acoustic cover.
9. Connect battery earth lead.

ANCILLARY DRIVE BELT - KV6

Service repair no - 86.10.03

Remove

1. Disconnect battery earth lead.
2. Remove engine acoustic cover. See BODY, Repairs.

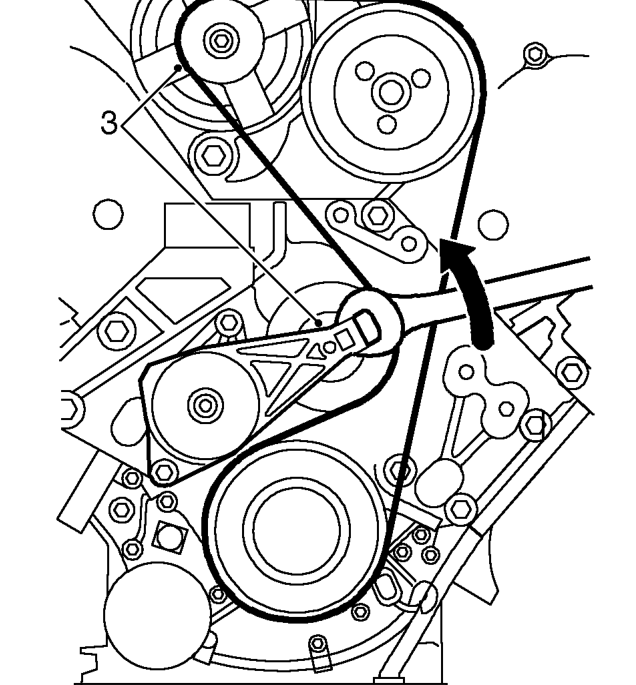

3. Using a 25 mm spanner, raise ancillary drive belt tensioner and release drive belt from alternator pulley.
4. Release and remove drive belt from remaining pulleys.
