Radio remote control

RADIO REMOTE CONTROL

Service repair no - 86.50.13

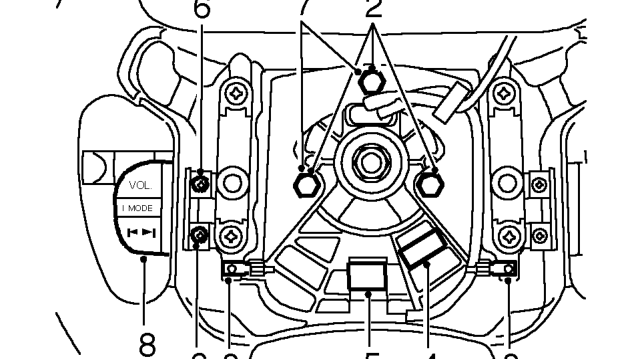

Remove

1. Remove driver’s airbag module. See RESTRAINT SYSTEMS, Repairs.

2. Fully loosen 3 bolts and release mounting bracket from fitted position.
3. Disconnect 2 Lucars from horn connectors.
4. Disconnect cruise control switch multiplug from harness.
5. Disconnect switch multiplug from harness.
6. Remove 2 screws securing radio remote control to steering wheel.
7. Remove 2 bolts from mounting bracket.
8. Remove radio remote control from steering wheel.

Refit

1. Locate wiring in steering wheel groove, engage radio remote control in steering wheel and secure.
2. Connect cruise control multiplug and position in steering wheel groove.
3. Connect switch multiplug to harness.
4. Connect horn Lucars.
5. Press bracket into position and tighten retaining bolts.
6. Refit driver’s airbag module. See RESTRAINT SYSTEMS, Repairs.

STARTER MOTOR - KV6 MANUAL GEARBOX

Service repair no - 86.60.01

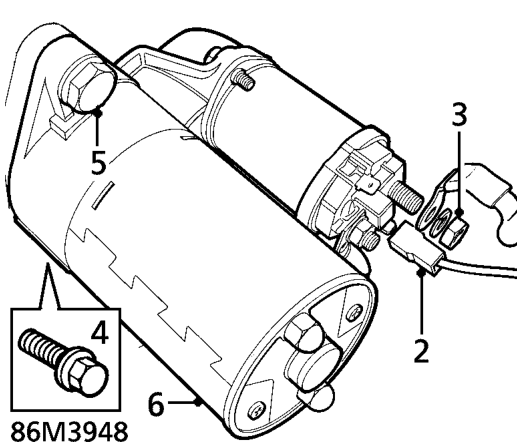

Remove

1. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

2. Disconnect Lucar connector from starter solenoid.
3. Remove nut and disconnect battery lead from starter solenoid.
4. Remove 2 bolts securing starter motor.
5. Remove starter motor.

Refit

1. Clean mating faces of starter motor and gearbox.
2. Fit starter motor and fit lower retaining bolt but do not tighten.
3. Fit upper retaining bolt.
4. Tighten both retaining bolts to 45 Nm.
5. Connect battery cable to starter solenoid, fit nut and tighten to 4 Nm.
6. Connect Lucar connector to solenoid.
7. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
