Ancillary drive belt - KV6 with air conditioning

Refit

1. Clean pulley ’V’s and tensioner pulley running surface.
2. Fit new drive belt to crankshaft pulley.
3. Using a 25 mm spanner raise belt tensioner and connect drive belt to steering pump and alternator pulleys. Ensure drive belt is correctly located in pulley grooves.
4. Fit engine acoustic cover. See BODY, Repairs.
5. Connect battery earth lead.

ANCILLARY DRIVE BELT - KV6 WITH AIR CONDITIONING

Service repair no - 86.10.03/20

Remove

1. Disconnect battery earth lead.
2. Remove engine acoustic cover. See BODY, Repairs.
3. Position jack to support engine.

CAUTION: Use a block of wood or hard rubber pad to protect sump.

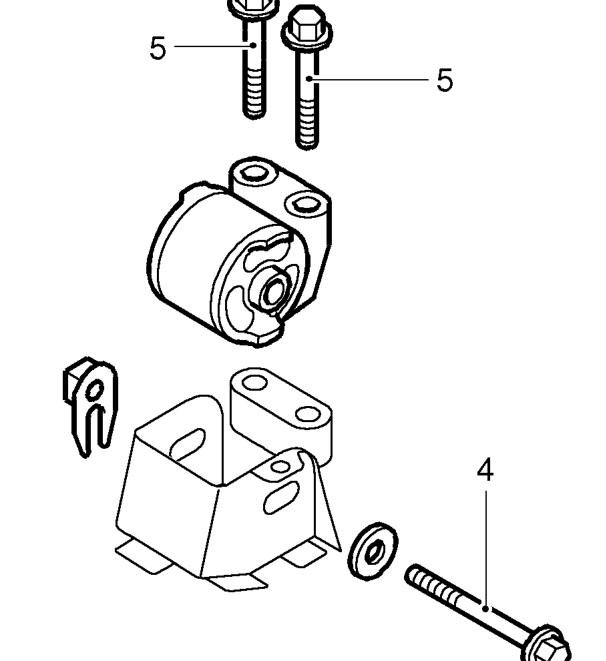

4. Remove through bolt securing RH engine mounting to body.
5. Remove 2 bolts securing RH mounting to engine. Remove mounting.
