ANCILLARY DRIVE BELT - DIESEL WITH AIR CONDITIONING

Service repair no - 86.10.03/20

Remove

  1. Disconnect battery earth lead.

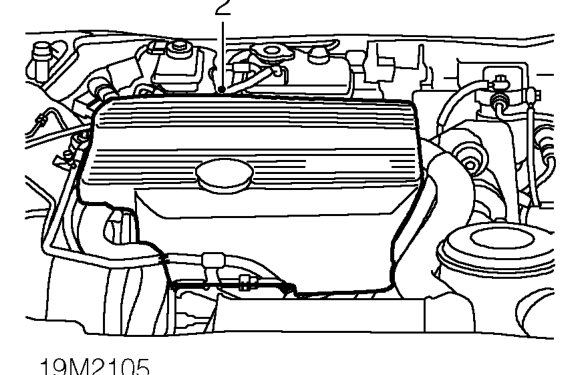

Ancillary drive belt - diesel with air conditioning – Disconnect battery earth lead.
  1. Remove engine acoustic cover.
Ancillary drive belt - diesel with air conditioning – Remove engine acoustic cover.

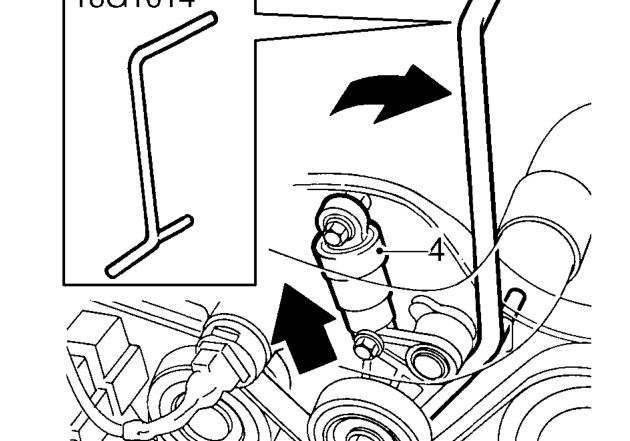

  1. Fit tool 18G 1614 to power steering pump bracket.
  2. Raise tensioner and release drive belt from alternator.
  3. Remove RH underbelly panel. See BODY, Repairs.
Ancillary drive belt - diesel with air conditioning – Remove RH underbelly panel. See BODY, Repairs.

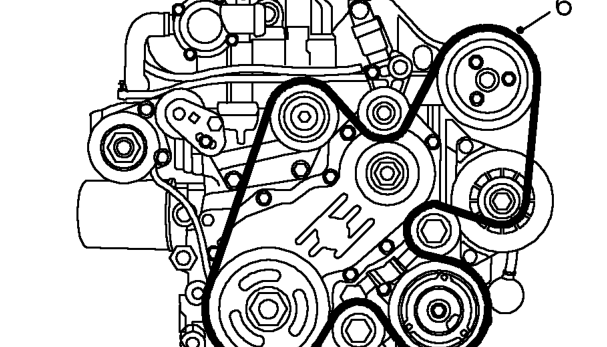

  1. Release ancillary belt from pulleys.
  2. Release belt from between crankshaft pulley and longitudinal member.
  3. Remove ancillary drive belt.

Refit

  1. Clean pulley ’V’s and tensioner pulley running surface.
  2. Fit new drive belt to crankshaft pulley.
  3. Position belt to remaining pulleys.
  4. Adjust ancillary drive belt tension. See Adjustments.
  5. Fit RH underbelly panel. See BODY, Repairs.
