Central door locking receiver

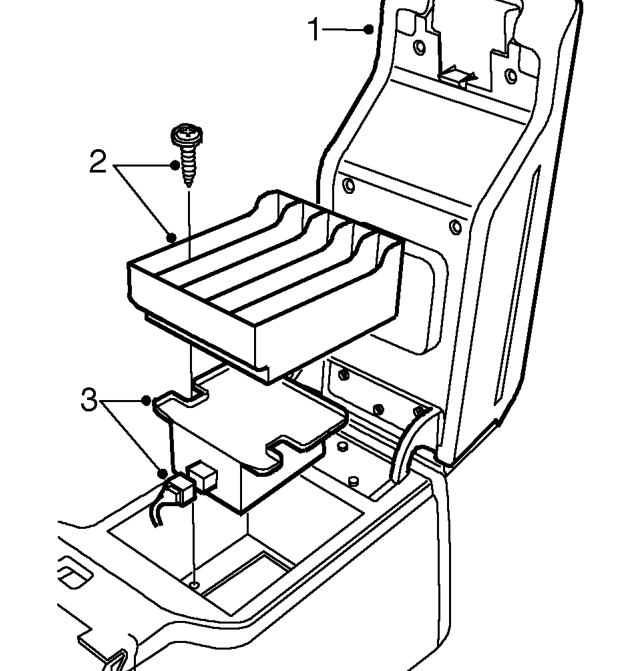

CENTRAL DOOR LOCKING RECEIVER

Service repair no - 86.26.25

1. Raise armrest.
2. Remove 2 screws securing cassette holder and remove holder.
3. Release receiver and disconnect multiplug.
4. Remove receiver.

Refit

1. Position receiver, connect multiplug. and locate receiver in centre console.
2. Fit cassette holder and tighten screws.
3. Lower armrest.

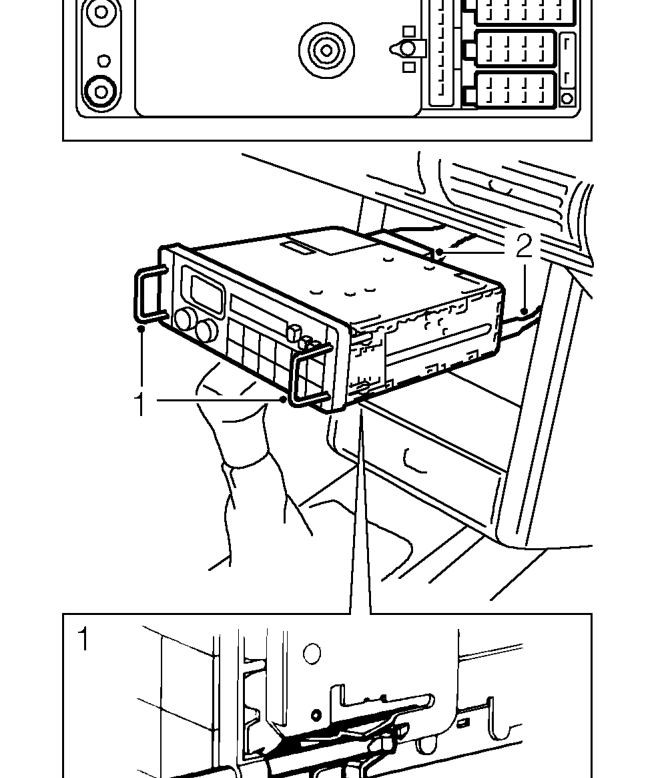

RADIO

Service repair no - 86.50.03

Remove

1. Fit radio removal tools SMD 4091 to release retaining clips. Pull on tools to release radio from fascia.
2. Disconnect multiplugs and aerial leads. Remove radio.
3. Remove tools from radio.

Refit

1. Position radio to aperture. Connect multiplugs and aerial leads
2. Slide radio into fascia until retaining clips engage.
3. Enter security code and check radio for correct operation.
