Rover 800 Workshop Manual (1996-1999)25 · Electrical
25 · Electrical

Fascia outboard switch pack

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs › Fascia outboard switch pack
ElectricalFascia outboard switch pack · page 1 of 2

FASCIA OUTBOARD SWITCH PACK

Service repair no - 86.65.79

Remove

  1. Disconnect battery earth lead.
  2. Release clamp and lower steering column.

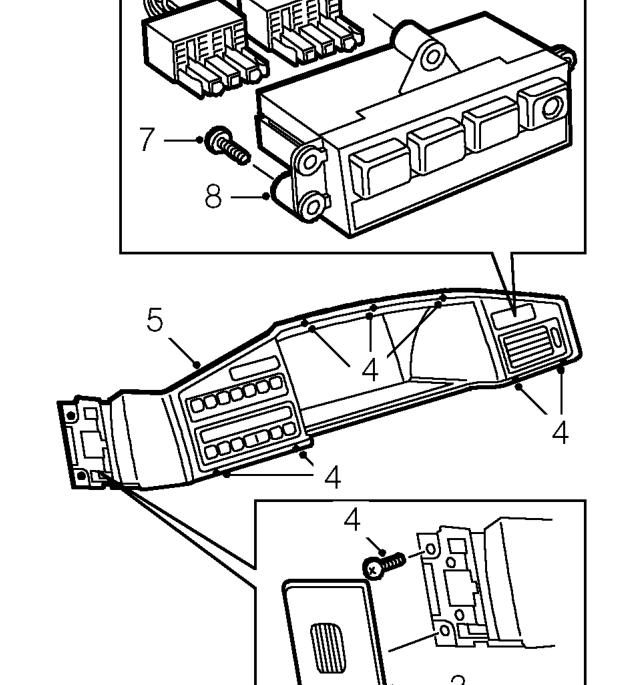

Fascia outboard switch pack – Release clamp and lower steering column.
  1. Remove side cover from instrument cowl.
  2. Remove 9 screws securing cowl to fascia.
  3. Release cowl from its fitted position and ease outer end towards steering wheel.
  4. Disconnect 2 multiplugs from switch pack.
  5. Unscrew 3 screws securing switch pack to cowl.
  6. Remove switch pack.

Refit

  1. Position switch pack and secure to cowl.
  2. Connect multiplugs.
  3. Align air vent and ease cowl into position.
  4. Fit retaining screws and side cover.
  5. Position steering column.
  6. Connect battery earth lead.

PASSIVE COIL

Service repair no - 86.77.35

Remove

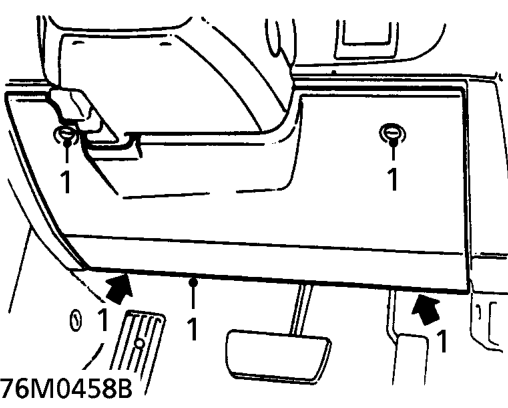

Passive coil – Service repair no - 86.77.35
  1. Release 4 turnbuckles securing fuse box cover and remove cover.
Passive coil – Release 4 turnbuckles securing fuse box cover and remove cover.

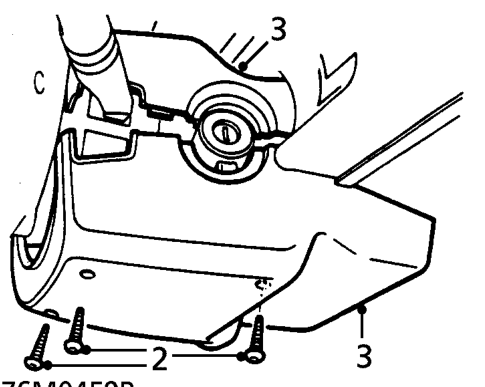

  1. Remove 3 screws securing lower half of column cowl.
  2. Separate and remove 2 halves of cowl.
