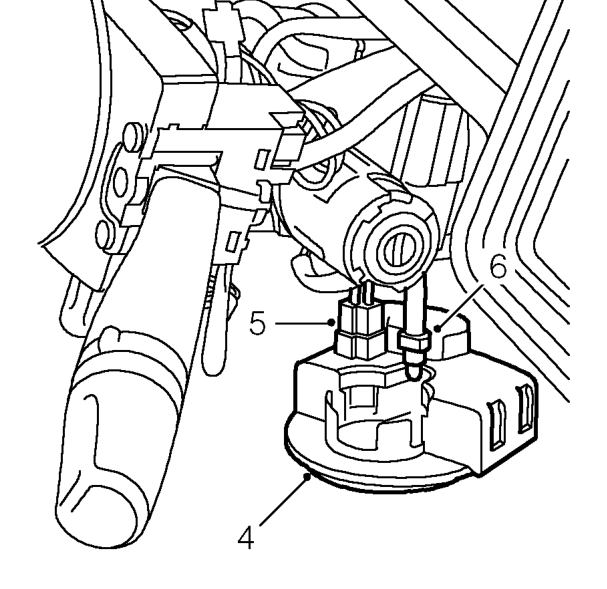

4. Release passive coil from starter switch.
5. Disconnect multiplug from passive coil.
6. Release illumination bulb holder and remove passive coil.

Refit

1. Position passive coil, connect multiplug and illumination bulb and secure passive coil to starter switch.
2. Fit column cowl and tighten screws.
3. Fit fusebox cover and secure turnbuckles.
