ANCILLARY DRIVE BELT TENSIONER - KV6

Service repair no - 86.10.06

Remove

  1. Remove ancillary drive belt. See this section.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Turn steering on RH lock.
Ancillary drive belt tensioner - kv6 – Turn steering on RH lock.

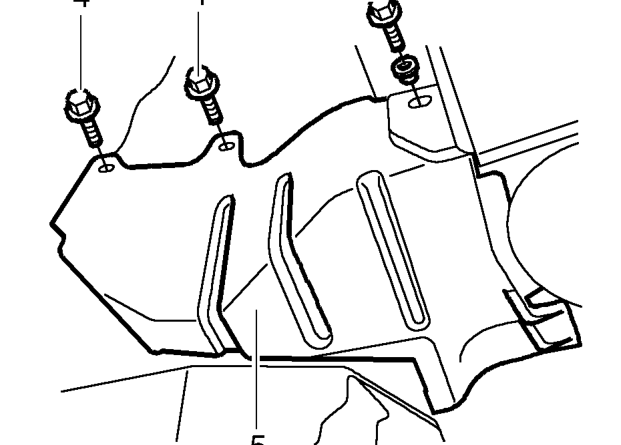

  1. Remove 3 screws securing splash shield to inner wing and collect spacer from forward screw.
  2. Remove splash shield.
  3. Support engine on jack.

CAUTION: Use a block of wood or hard rubber pad to protect sump.

Ancillary drive belt tensioner - kv6 – Support engine on jack.

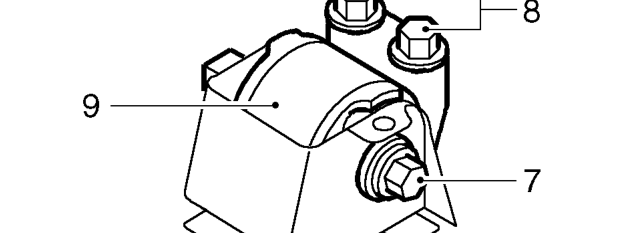

  1. Loosen through bolt securing engine RH mounting bracket to body.
  2. Remove 2 bolts securing engine mounting bracket to engine.
  3. Swivel mounting bracket away from engine and tighten through bolt to hold mounting clear of engine.
Ancillary drive belt tensioner - kv6 – Swivel mounting bracket away from engine and tighten through bolt to hold mounting clear o

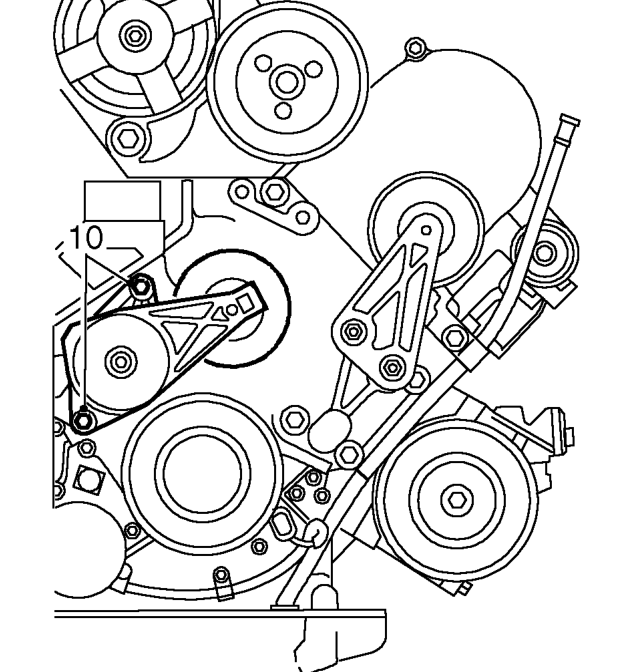

  1. Remove 2 bolts and remove drive belt tensioner.
