Starter motor - automatic gearbox

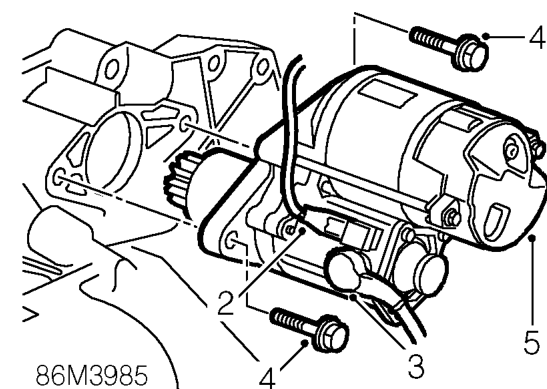

STARTER MOTOR - AUTOMATIC GEARBOX

Service repair no - 86.60.01

Remove

1. Remove air cleaner, See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

2. Disconnect Lucar connector from starter solenoid.
3. Remove nut and disconnect battery lead from starter solenoid.
4. Remove 2 bolts securing starter motor.
5. Remove starter motor.

Refit

1. Clean mating faces of starter motor and gearbox.
2. Fit starter motor and fit rear bolt but do not tighten.
3. Fit front retaining bolt.
4. Tighten both retaining bolts to 45 Nm.
5. Connect battery cable to starter solenoid, fit nut and tighten to 4 Nm .
6. Connect Lucar connector to solenoid.
7. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

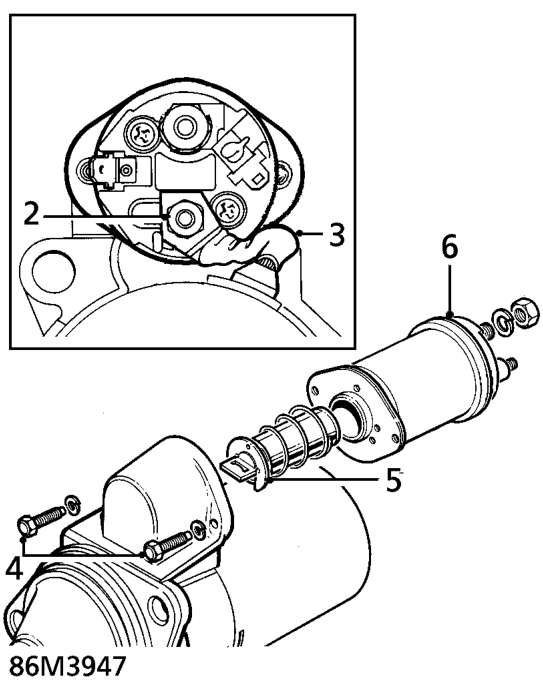

STARTER SOLENOID - KV6 MANUAL GEARBOX

Service repair no - 86.60.08

Remove

1. Remove starter motor. See this section.

2. Remove nut securing starter motor cable to solenoid.
3. Disconnect starter motor cable from starter solenoid.
4. Remove 2 screws securing starter solenoid to starter motor.
5. Release solenoid operating plunger from starter lever.
6. Remove starter solenoid.
