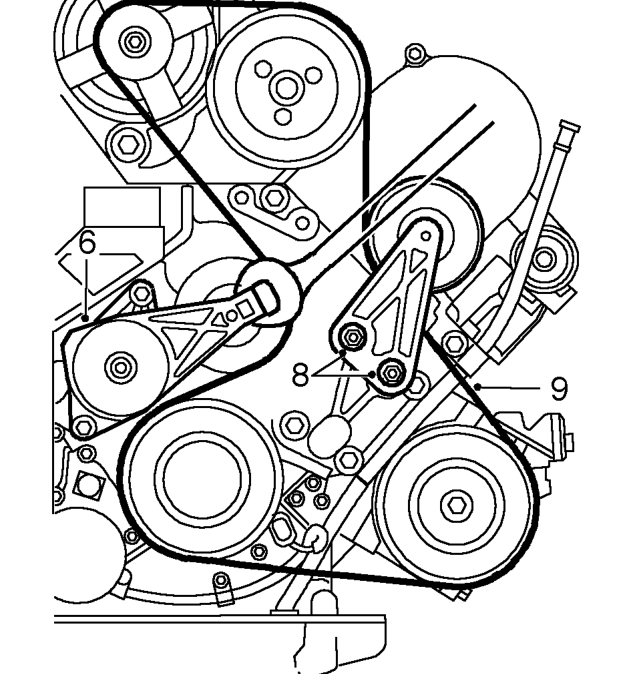

Ancillary drive belt - KV6 with air conditioning (page 2 of 2)

6. Using a 25 mm spanner, raise ancillary drive belt tensioner and release drive belt from alternator pulley.
7. Raise engine on jack sufficiently to gain access to drive belt jockey pulley bracket nuts.
8. Remove 2 nuts securing drive belt jockey pulley bracket. Remove pulley bracket.
9. Release and remove drive belt from remaining pulleys.

Refit

1. Clean pulley ’V’s, tensioner pulley and jockey pulley running surfaces.
2. Fit new drive belt to crankshaft pulley.
3. Fit jockey pulley ensuring drive belt is positioned behind pulley bracket. fit nuts and tighten to 45 Nm.
4. Using a 25 mm spanner raise belt tensioner and connect drive belt to compressor, steering pump and alternator pulleys. Ensure drive belt is correctly located in pulley grooves.
5. Fit RH engine mounting, fit and tighten bolts securing mounting to engine to 75 Nm .
6. Align engine mounting to body, fit and tighten through bolt to 45 Nm.
7. Fit engine acoustic cover, See BODY, Repairs.
8. Connect battery earth lead.
