FRONT SEAT BELT PRE-TENSIONER - 4 & 5 DOOR

Service repair no - 76.73.31

WARNING: SRS procedures must be followed and ALL precautions observed. See Precautions. • Replace pre-tensioner every 15 years.

Remove

Front seat belt pre-tensioner - 4 & 5 door – Service repair no - 76.73.31

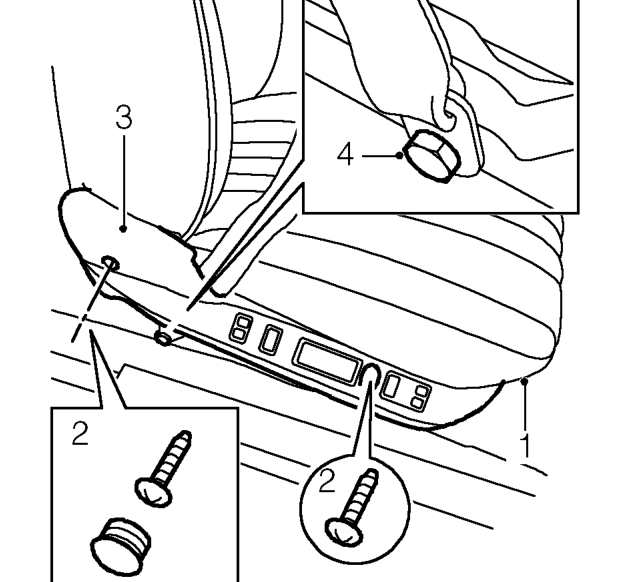

  1. Move seat to fully forward position and tilt seat squab forward.
  2. Remove trim button and 2 screws securing seat valance.
  3. Release seat valance from fitted position.
  4. Unscrew bolt securing seat belt anchorage to seat.

NOTE: Fibre washer retains bolt assemblies.

Front seat belt pre-tensioner - 4 & 5 door – Unscrew bolt securing seat belt anchorage to seat.

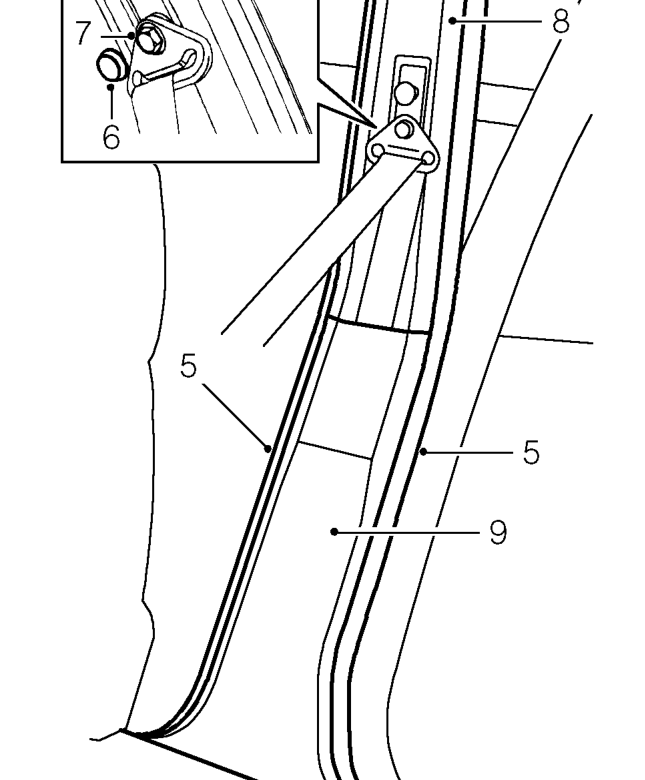

  1. Release flange finishers from B/C post.
  2. Remove cover from top anchorage bolt.
  3. Unscrew bolt securing top anchorage.
  4. Release trim stud and remove upper finisher.
  5. Release 2 trim studs, disengage belt webbing and remove lower finisher.
