Driver airbag module

DRIVER AIRBAG MODULE

Service repair no - 76.73.71

CAUTION: Replace the airbag every 10 years.

• Do not install used SRS parts from

• another car. When repairing an SRS system always use genuine new Rover parts. • Carefully inspect the airbag assembly before installing. Do not install an airbag assembly that show signs of being dropped or improperly handled, such as dents, cracks or deformation. • Do not try to disassemble or tamper with the airbag assembly. • Special bolts are necessary for installing the airbag assembly. Do not use other bolts.

Remove

1. Remove key from starter switch.

CAUTION: Wait 10 minutes to allow SRS back-up power circuit to discharge before commencing work.

2. Disconnect both battery leads, earth lead first.

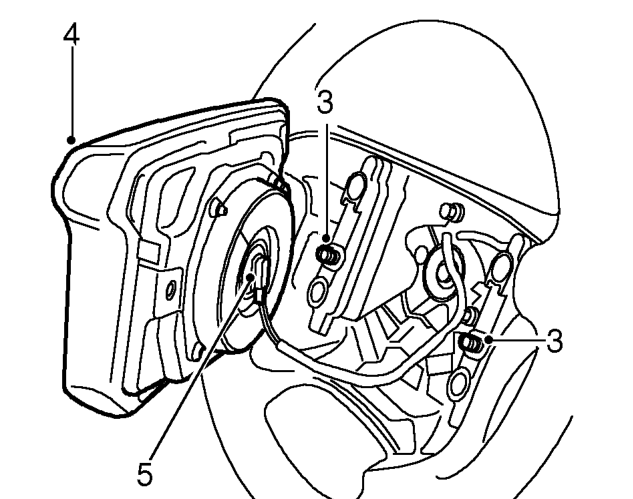

3. Release 2 TX30 bolts securing airbag module to steering wheel. Rotate steering wheel 90° for access.
4. Release airbag module from steering wheel.

CAUTION: Do not allow airbag module to hang by the harness.

5. Disconnect multiplug from airbag module.
6. Remove airbag module.

CAUTION: Store airbag module in accordance with the storage procedures. See Precautions.

NOTE: If an airbag is to be replaced, the bar code must be recorded.

Refit

1. Connect multiplug to airbag module with harness downwards (shown in No. 5 of Remove)
2. Position airbag to steering wheel.
3. Hand start screws and tighten to 8 Nm.
4. Connect battery leads, earth lead last.
5. Check SRS system using TestBook.
