SRS WARNING LIGHT BULBS

Service repair no - 76.73.74

WARNING: SRS procedures must be followed and ALL precautions observed. See Precautions.

Remove

  1. Remove instrument panel. See INSTRUMENTS, Repairs.

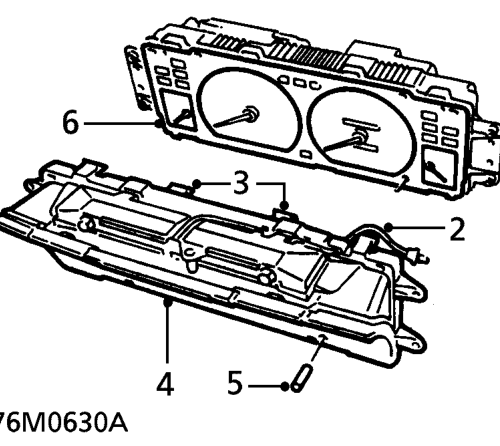

Srs warning light bulbs – Remove instrument panel. See INSTRUMENTS, Repairs.
  1. Release bulb holder from back of panel.
  2. Release tags securing window to panel.
  3. Remove window.
  4. Remove trip reset button.
  5. Remove face plate.

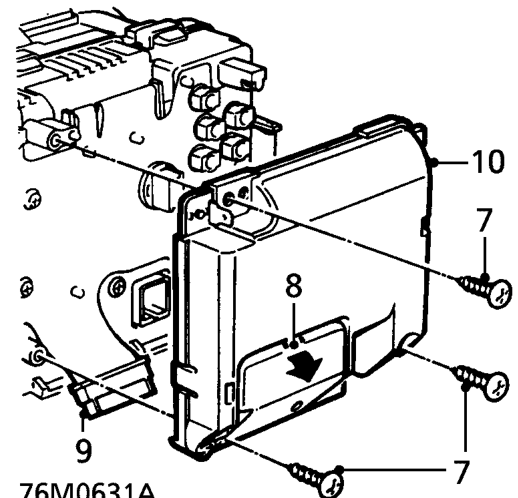

Srs warning light bulbs – Remove face plate.
  1. Remove 3 screws securing ECU.
  2. Remove small cover from ECU.
  3. Disconnect multiplug from ECU.
  4. Remove ECU.

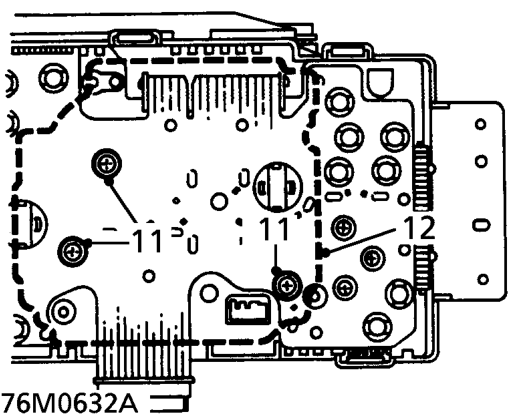

Srs warning light bulbs – Remove ECU.
  1. Remove 3 screws securing tachometer.
  2. Remove tachometer.

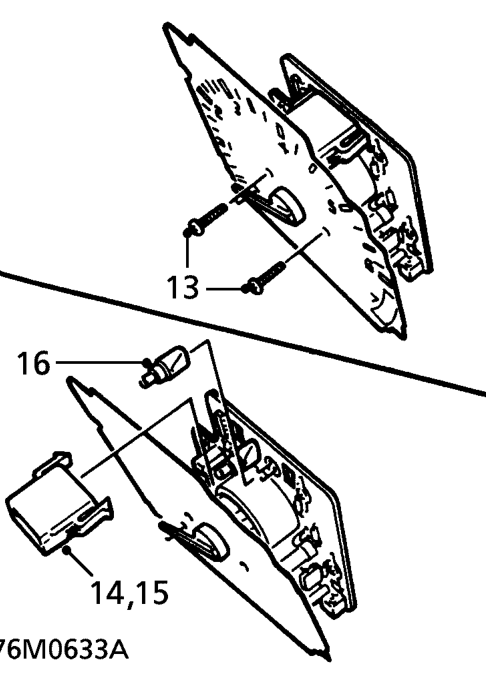

Srs warning light bulbs – Remove tachometer.
  1. Carefully remove 2 screws securing face plate to tachometer.
  2. Release warning light housing from tachometer circuit board.
  3. Very carefully (to avoid damage to tachometer needle and spindle), tilt and remove warning light housing.
  4. Remove 2 warning light bulbs.
