Airbag control unit

AIRBAG CONTROL UNIT

Service repair no - 76.73.72

WARNING: SRS procedures must be followed and ALL precautions observed. See Precautions.

Remove

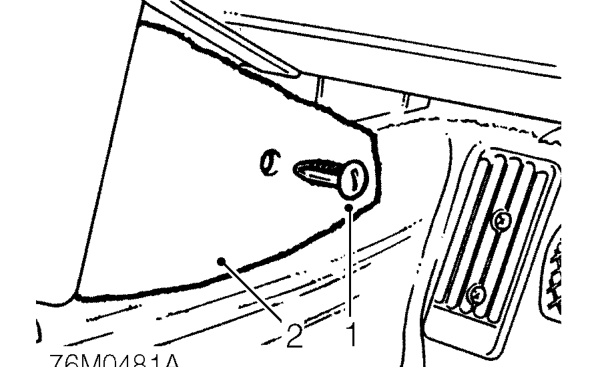

1. Remove stud securing each carpet finisher to sides of radio console.
2. Remove 2 carpet finishers.

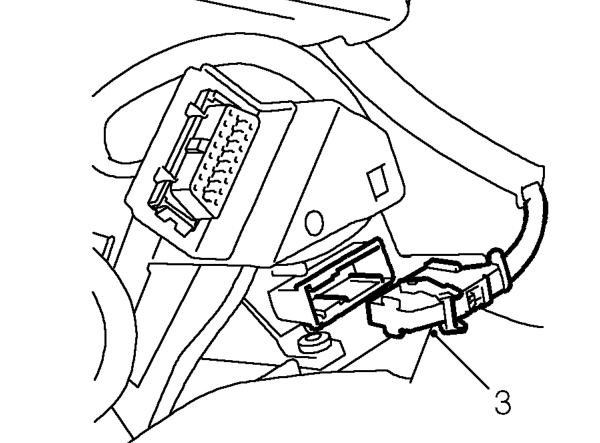

3. Release clip and disconnect airbag harness multiplug from airbag control unit.

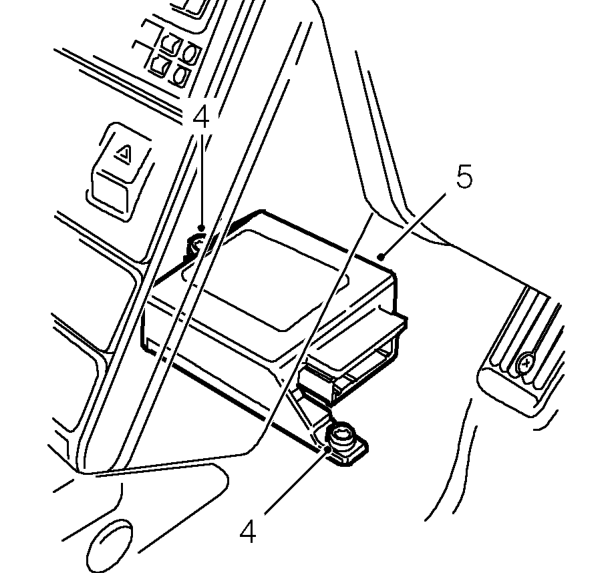

4. Remove 2 TX30 screws securing airbag control unit to body bracket.
5. Move carpet clear of control unit and remove control unit.

Refit

CAUTION: Ensure unit and bracket faces are clean and free from burrs. An incorrectly mounted unit could cause the system to malfuction.

1. Position airbag control unit to body bracket, fit screws and tighten to 10 Nm. Ensure both screws are fully seated.
2. Connect multiplug to airbag control unit and secure clip.
3. Fit carpet finishers and secure with studs.
4. Check SRS system using TestBook.
