FRONT SEAT BELT PRE-TENSIONER - COUPE

Service repair no - 76.73.31

WARNING: SRS procedures must be followed and ALL precautions observed. See Precautions. Replace pre-tensioner every 15 years.

•

Remove

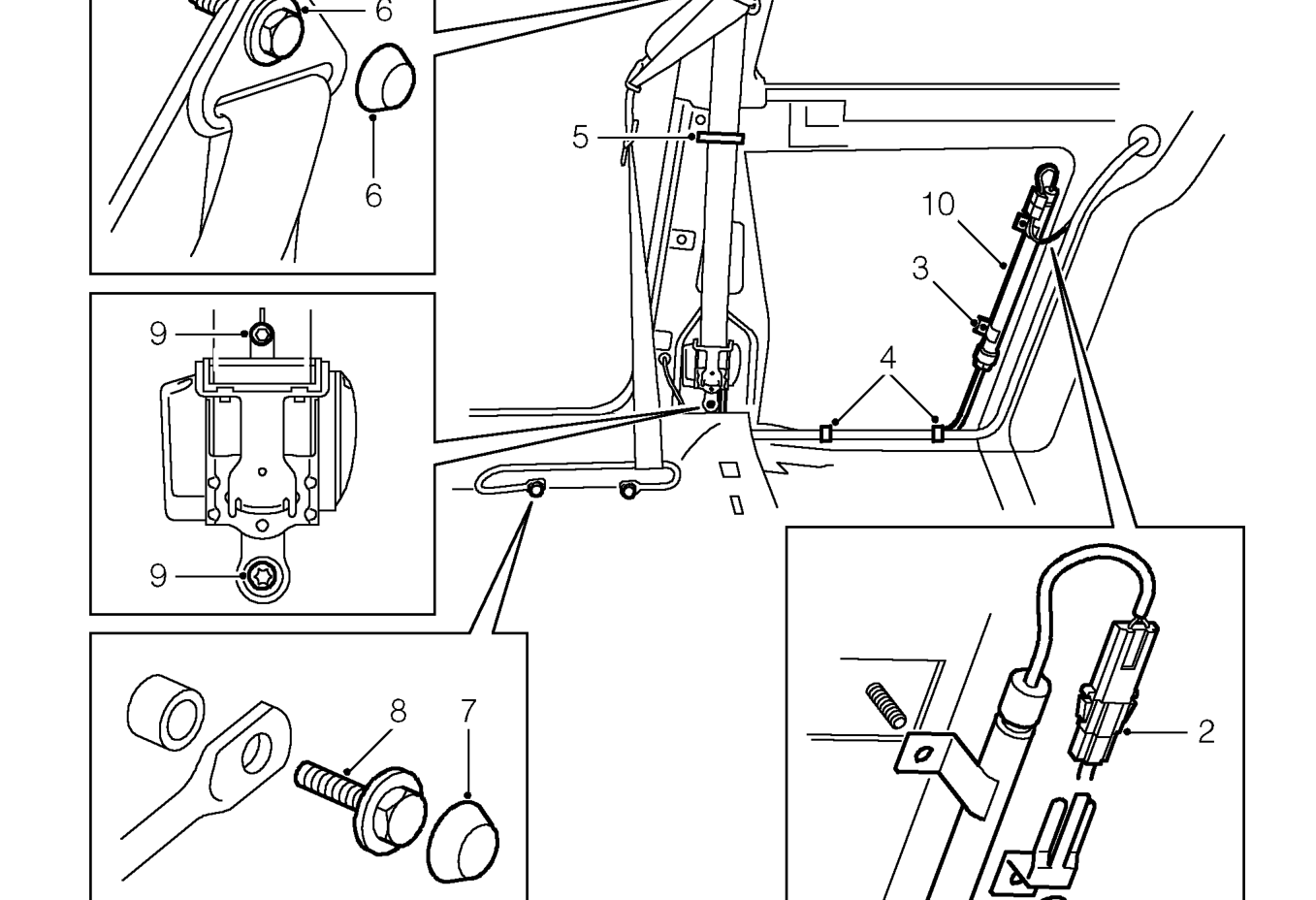

Front seat belt pre-tensioner - coupe – Service repair no - 76.73.31
  1. Remove rear quarter lower trim casing. See BODY, Repairs.
  2. Release and disconnect pre-tensioner harness multiplug.
  3. Remove 2 nuts securing pre-tensioner tube, collect harness multiplug bracket.
  4. Remove 2 cable ties securing pre-tensioner cable to body harness.
  5. Release seat belt guide from B/C post.
  6. Remove bolt cover and unscrew bolt securing seat belt anchorage to B/C post.

NOTE: Fibre washer retains bolt and spacer assembly.

  1. Remove 2 covers from bolts securing seat belt retaining bar.
  2. Remove 2 bolts securing seat belt retaining bar and remove retaining bar.
  3. Remove 2 bolts securing seat belt reel.
  4. Remove seat belt reel and pre-tensioner assembly.
