Airbag harness

AIRBAG HARNESS

Service repair no - 76.73.73

WARNING: SRS procedures must be followed and ALL precautions observed. See Precautions.

Remove

1. Remove fascia. See BODY, Repairs.
2. Remove instrument cowl. See INSTRUMENTS, Repairs.

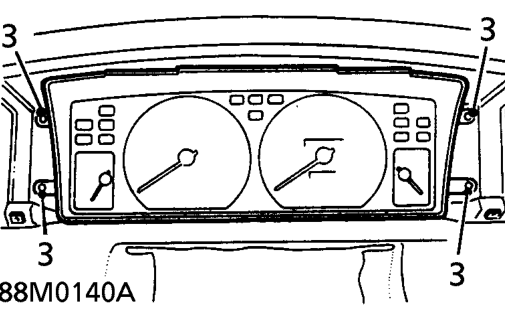

3. Remove 4 screws securing instrument panel.

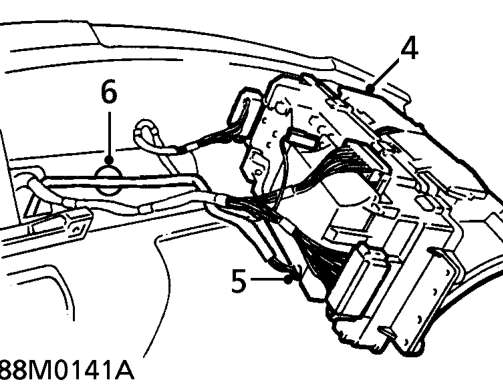

4. Release instrument panel from fascia.
5. Disconnect SRS harness multiplug from instrument panel.
6. Release harness clip from instrument panel recess.

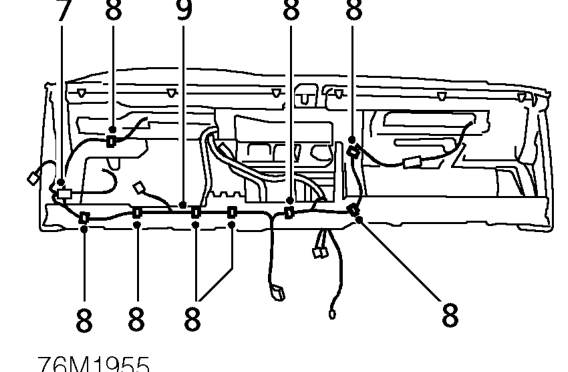

7. Disconnect fascia harness from airbag harness and release airbag harness connector from fascia.
8. Release 8 clips securing airbag harness to fascia.
9. Remove airbag harness from fascia.

Refit

1. Position harness to fascia and secure harness clips.
2. Secure airbag harness connector to fascia and connect fascia harness to airbag harness.
3. Secure harness clip to instrument pack recess.

CAUTION: Ensure harness is routed correctly and that all harness securing clips are correctly engaged and harness is undamaged.

4. Connect airbag harness multiplug to instrument panel.

CAUTION: Ensure connector is correctly engaged.

5. Position instrument panel to fascia and fit and tighten screws.
6. Fit instrument cowl. See INSTRUMENTS, Repairs.
7. Fit fascia. See BODY, Repairs.
8. Check SRS system using TestBook.
