INSTRUMENT COWL

Service repair no - 88.20.02

Remove

  1. Raise steering column release lever and lower steering column

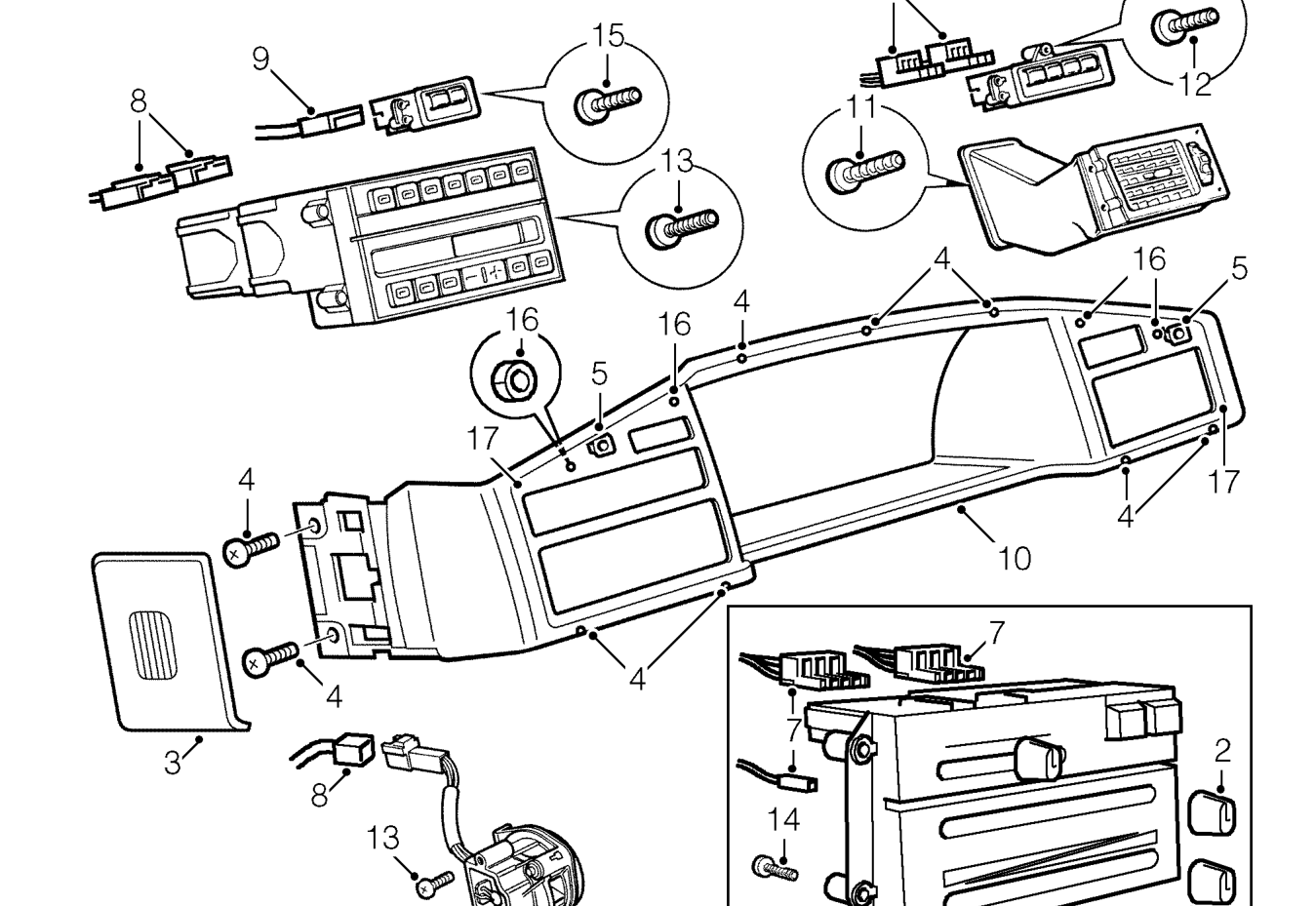

Instrument cowl – Raise steering column release lever and lower steering column
  1. Non air conditioning: Remove 2 heater control knobs.
  2. Remove side cover from cowl.
  3. Remove 9 screws securing cowl.
  4. Release 2 clips securing cowl and withdraw cowl.
  5. Disconnect 2 multiplugs from outboard switch pack.
  6. Non air conditioning: Disconnect 2 multiplugs and earth lead Lucar from inboard switch pack.
  7. Air conditioning: Disconnect 2 multiplugs from ATC panel and multiplug from interior temperature sensor.
  8. 5 door models: Disconnect multiplug from rear wash/wipe switches.
  9. Remove cowl assembly. Do not carry out further dismantling if component is removed for access only.
  10. Remove 4 screws securing heater vent and remove vent.
  11. Remove 3 screws securing outboard switch pack and remove switch pack.
