Rover 800 Workshop Manual (1996-1999)26 · Instruments
26 · Electrical

Engine coolant temperature gauge sensor - diesel

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs › Engine coolant temperature gauge sensor - diesel
InstrumentsEngine coolant temperature gauge sensor - diesel

ENGINE COOLANT TEMPERATURE GAUGE SENSOR - DIESEL

Service repair no - 88.25.20

Remove

Engine coolant temperature gauge sensor - diesel – Service repair no - 88.25.20

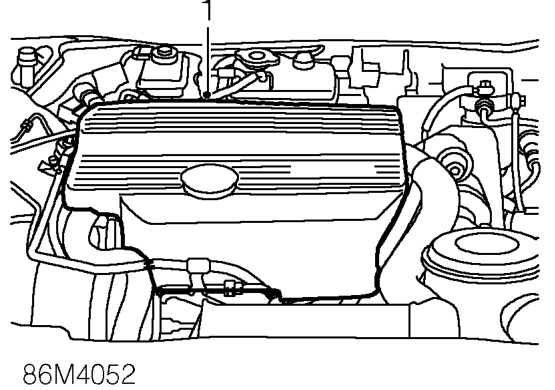

  1. Remove engine acoustic cover.
  2. Position container to collect coolant.
Engine coolant temperature gauge sensor - diesel – Position container to collect coolant.

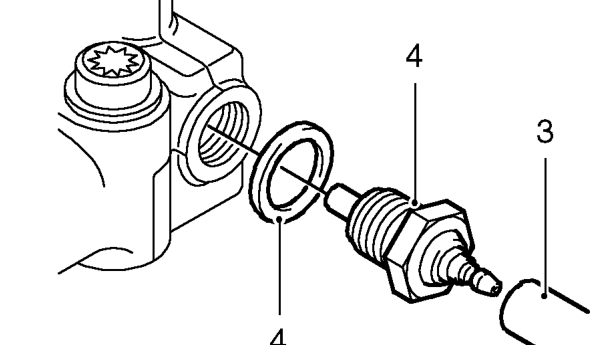

  1. Disconnect lead from engine coolant temperature gauge sensor.
  2. Remove sensor from cylinder head, collect and discard sealing washer.

Refit

  1. Clean sensor and cylinder head mating faces.
  2. Fit new sealing washer to sensor.
  3. Fit sensor and tighten to 50 Nm.
  4. Connect lead to engine coolant temperature gauge sensor.
  5. Refill cooling system. See COOLING SYSTEM - DIESEL, Adjustments.
  6. Fit engine acoustic cover.
