13. Air conditioning: Remove 2 screws securing interior temperature sensor and 4 screws securing ATC panel. Remove sensor and panel.
14. Non air conditioning: Remove 4 screws securing inboard switch pack and remove switch pack.
15. 5 Door models: Remove 2 screws securing rear wash/wipe switch pack and remove switch pack.
16. Remove 2 nuts securing each veneer panel.
17. Remove 2 veneer panels.

Refit

1. Fit veneer panels and fit and tighten nuts.
2. 5 door models: Position wash/ wipe switch pack and fit and tighten screws.
3. Air conditioning : Position ATC panel and fit and tighten screws. position interior temperature sensor and fit and tighten screws.
4. Non air conditioning: Position inboard switch panel and fit and tighten screws.
5. Position outboard switch pack and fit and tighten screws.
6. Position air vent assembly and fit and tighten screws.
7. Position instrument cowl and feed harness through.
8. 5 door models: Connect multiplug to wash/wipe switches.
9. Air conditioning: Connect multiplugs to ATC panel and interior temperature sensor.
10. Non air conditioning: Connect multiplugs and Lucar to inboard switch pack.
11. Connect multiplugs to outboard switch pack.
12. Secure cowl to fascia and fit and tighten screws.
13. Fit cowl side cover.
14. Non air conditioning: Fit heater control knobs.
15. Raise steering column release lever and reposition steering column.

ENGINE COOLANT TEMPERATURE GAUGE SENSOR - KV6

Service repair no - 88.25.20

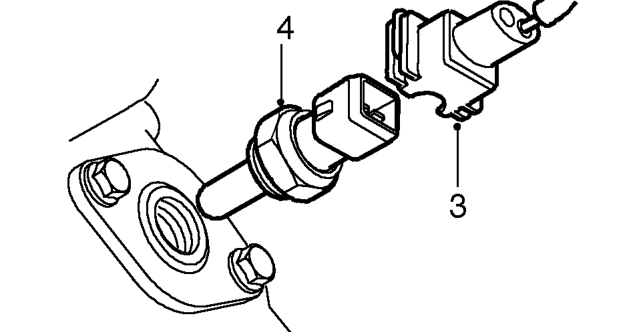

Remove

1. Disconnect battery earth lead.
2. Drain cooling system. See COOLING SYSTEM - ’KV6’, Adjustments.

3. Disconnect multiplug from engine coolant temperature gauge sensor.
4. Remove sensor from LH cylinder head.

Refit

1. Clean threads on sensor.
2. Fit and tighten sensor to 7 Nm.
3. Connect multiplug to engine coolant temperature gauge sensor.
4. Connect battery earth lead.
5. Refill coolant. See COOLING SYSTEM - ’KV6’, Adjustments.
