Passenger airbag module (page 2 of 2)

3. Open glove box.

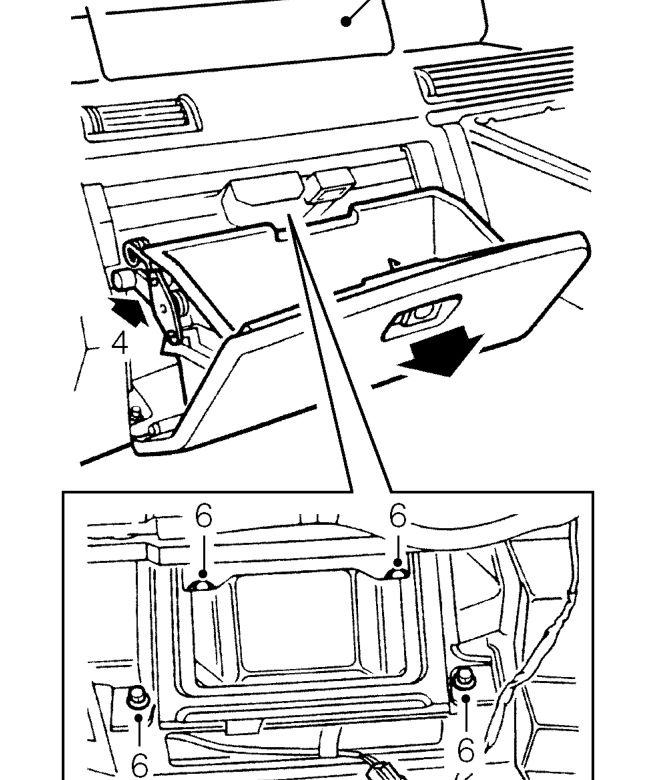

4. Align glove box stops with cut outs in fascia and lower glove box.
5. Disconnect airbag harness multiplug.
6. Using a number 10 Torx socket, remove 4 external Torx screws securing airbag module.
7. Remove airbag module.

CAUTION: Store and airbag module in accordance with the storage procedures. See Precautions.

NOTE: If an airbag is replaced, the bar code must be recorded.

Refit

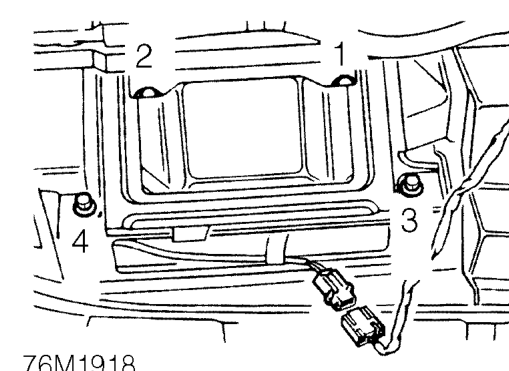

1. Fit airbag to fascia.

2. Hand start screws, and in sequence shown tighten to 9 Nm.
3. Connect airbag harness multiplug.
4. Raise glove box, align stops with cut-outs in fascia and close glove box.
5. Connect battery leads, earth lead last.
6. Check SRS system using TestBook.
