AIR CLEANER ELEMENT

Service repair no - 19.10.10

Remove

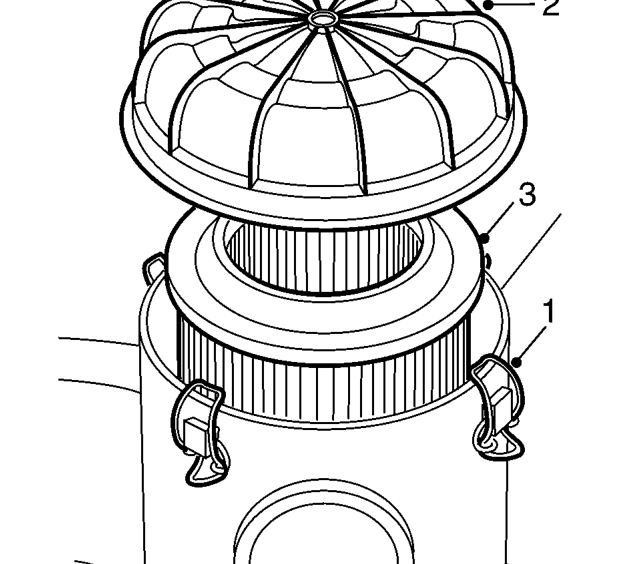

Air cleaner element – Service repair no - 19.10.10
  1. Release 4 clips securing air cleaner cover.
  2. Remove cover.
  3. Remove and discard air cleaner element.

Refit

  1. Clean inside of air cleaner casing.
  2. Fit new air cleaner element in casing.
  3. Position cover and secure with clips.

THROTTLE CABLE

Service repair no - 19.20.06

Remove

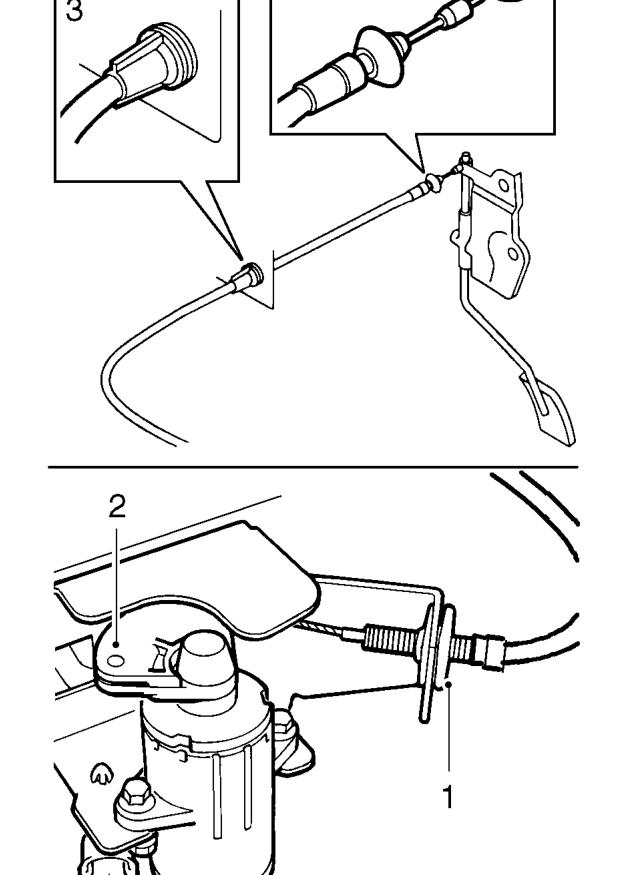

Throttle cable – Service repair no - 19.20.06
  1. Release cable adjusting nut from abutment.
  2. Release inner cable from throttle position sensor cam.
  3. Rotate outer cable retainer 90°and release retainer from bulkhead.
  4. Remove clip and release cable from throttle pedal.
  5. LHD models: Release outer cable from 2 clips.
  6. Remove cable.
